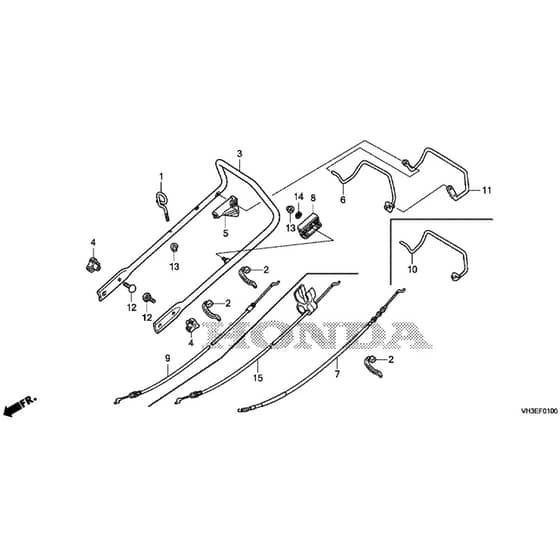

Honda HRG416K1-SKEA - Handle Pipe Diagram

Description

Honda HRG416K1-SKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP28475-VK8-010 Available to backorder	1 Rope Guide	£4.45 £3.71
2	HP32901-VK7-000 Available to backorder	2 Cable Tie	£6.30 £5.25
3	HP53110-VH3-R10ZA Available to backorder	3 Pipe	£98.54 £82.12
4	HP53125-VH3-013 In stock	4 Handle Grip	£3.92 £3.27
5	HP54315-VH3-000 In stock	5 Lever Stopper	£4.82 £4.02
6	HP54415-VH3-851ZB Available to backorder	6 Clutch Lever	£19.87 £16.56
7	HP54510-VH3-R21 In stock	7 Clutch Cable	£37.80 £31.50
11	HP75191-VH3-851ZA Available to backorder	11 Brake Lever	£30.72 £25.60
12	HP90133-VH4-000 In stock	12 Pan Head Bolt 8 X 30	£1.76 £1.47
13	HP90303-VH3-N10 Available to backorder	13 Nylon Lock Nut	£4.73 £3.94
15	HP54530-VH3-R11 In stock	15 Brake Cable Assy	£14.76 £12.30
