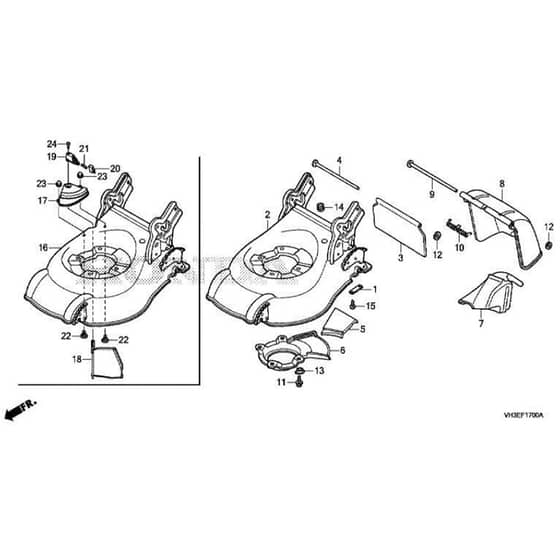

Honda HRG416K1-SKEA - Cutter Housing Diagram

Description

Honda HRG416K1-SKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42938-VH3-850 Available to backorder	1 Axle Holder	£1.34 £1.12

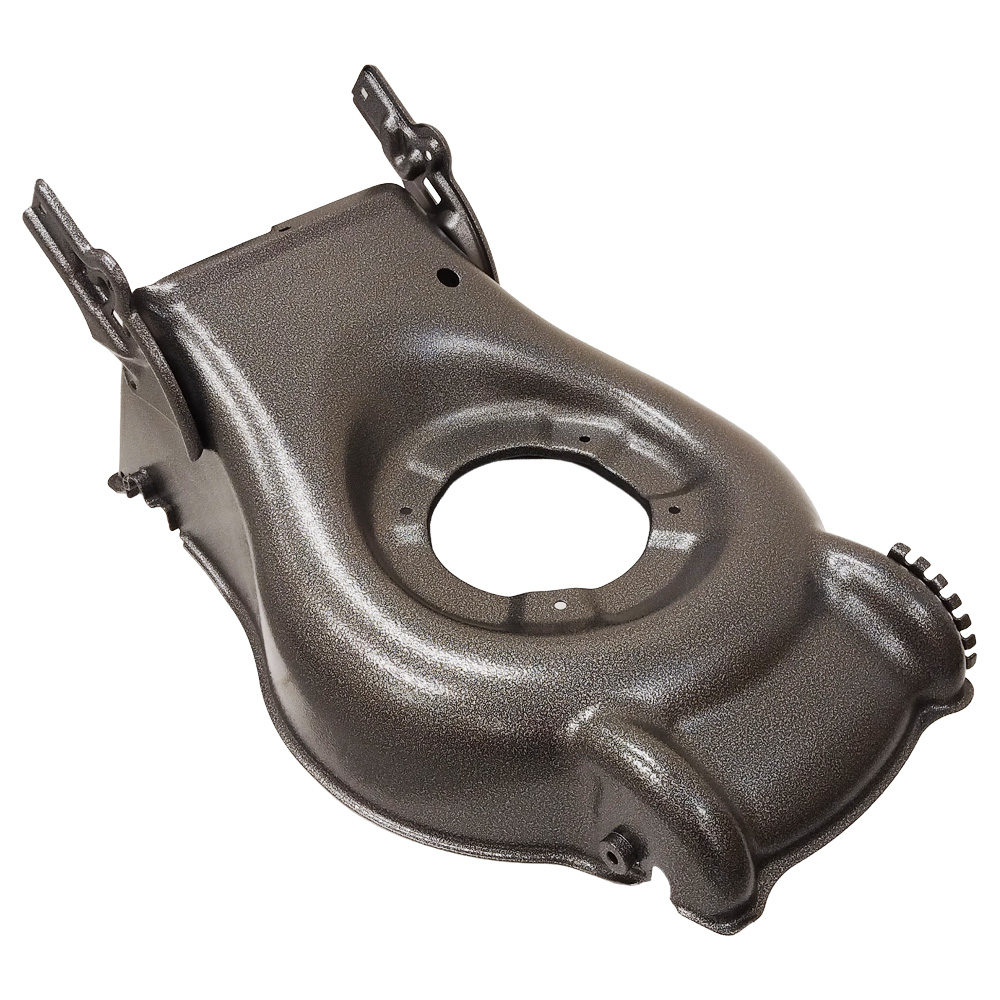

2	HP76110-VH3-P20ZC Available to backorder	2 Deck	£190.32 £158.60
3	HP76118-VH3-010 Available to backorder	3 Shield	£12.02 £10.02
4	HP76138-VH3-000 Available to backorder	4 Rear Shield Shaft	£20.52 £17.10
5	HP76143-VH3-010 Available to backorder	5 Guide Plate	£10.66 £8.88

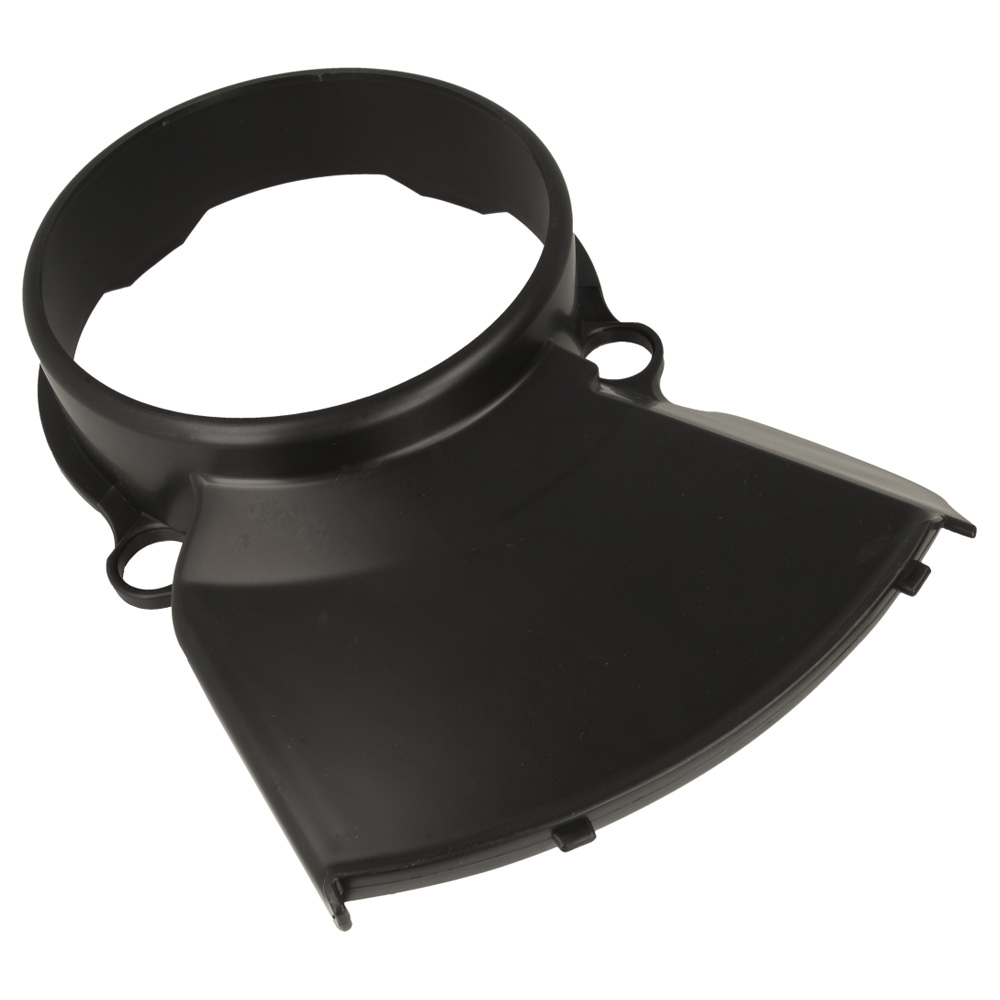

6	HP76147-VH3-010 Available to backorder	6 Roto-Stop Cover	£35.64 £29.70
8	HP76281-VH3-010ZB Available to backorder	8 Discharge Guard	£37.50 £31.25
9	HP76282-VH3-000 Available to backorder	9 Discharge Guard Shaft	£4.92 £4.10
10	HP76284-VH3-N10 Available to backorder	10 Guard Return Spring	£8.58 £7.15
11	HP90102-VA4-000 Available to backorder	11 Engine Setting Bolt	£3.67 £3.06
12	HP90301-VK8-J50 Available to backorder	12 Push Nut	£5.04 £4.20
13	HP90501-VH3-000 Available to backorder	13 Roto Stop Cover Washer	£1.93 £1.61
14	HP91651-VH3-850 Available to backorder	14 Cable Grommet	£1.57 £1.31
15	HP93904-35210 Available to backorder	15 Self Tapping Screw	£1.86 £1.55
