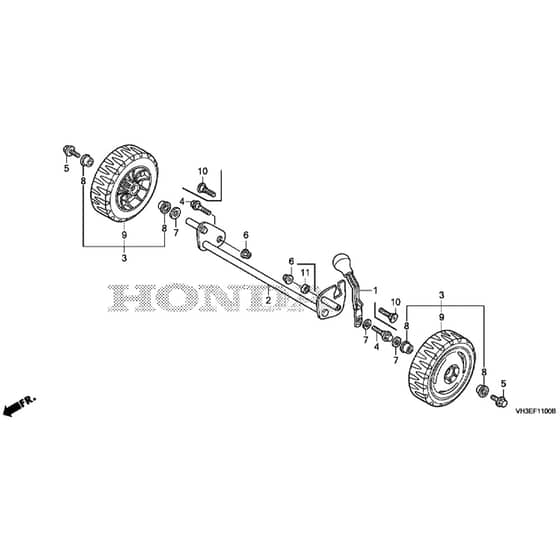

Honda HRG416K1-PKEA - Front Wheel Diagram

Description

Honda HRG416K1-PKEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42950-VH3-R10 Available to backorder	1 Height Adjuster	£32.06 £26.72
2	HP44310-VH3-P10 Available to backorder	2 Axle Shaft	£63.96 £53.30
2	HP44310-VH3-R10 Available to backorder	2 Front Axle	£42.53 £35.44
4	HP90103-VG3-010 Available to backorder	4 Adjuster Arm Bolt	£3.84 £3.20
4	HP90103-VH3-R10 Available to backorder	4 Adjuster Arm Bolt	£4.78 £3.98
5	HP90110-VA4-000 In stock	5 Wheel Bolt	£5.76 £4.80
6	HP90115-659-003 In stock	6 Nut	£1.10 £0.92
7	HP90455-VA2-000 Available to backorder	7 Wheel Washer	£2.88 £2.40
8	HP44710-VH3-R10ZA In stock	8 Front Wheel	£47.00 £39.17
8	HP91051-VE0-750 In stock	8 Bearing	£11.16 £9.30
