Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Rear Drive Diagram

Name: Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Rear Drive Diagram
SKU: hrg415csd_1999_sdt_mabf_8900001_8999999_rear_drive-group
Price: 0.26 GBP
Availability: InStock

Part No. hrg415csd_1999_sdt_mabf_8900001_8999999_rear_drive-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

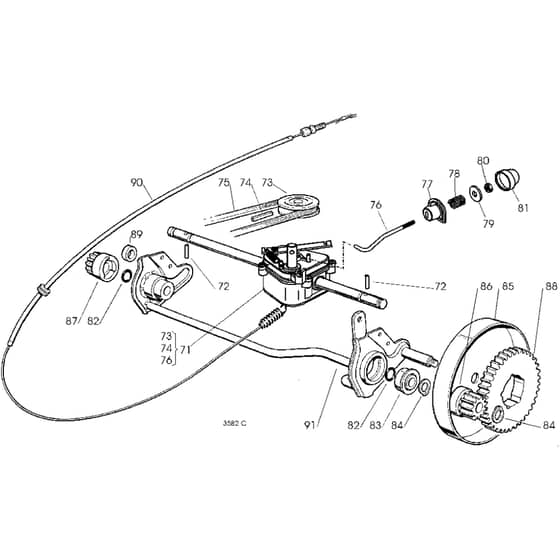

Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Rear Drive Diagram

Description

Honda HRG415CSD (1999) - SDT Rotary Mower Parts Diagram

	Part No.	Details
71	HP80058-Y10-003 Available to backorder	Rear Drive Assy	£237.72 £198.10
72	HP80059-Y10-003 Available to backorder	Pin	£3.56 £2.97
73	HP80257-Y09-003 Available to backorder	Pulley	£22.84 £19.03
74	HP80061-Y10-003 In stock	Pin	£2.46 £2.05
75	HP80062-Y10-003 Available to backorder	Belt	£25.69 £21.41
76	HP80063-Y10-003 Available to backorder	Adjuster Rod	£6.77 £5.64
77	HP80064-Y10-003 Available to backorder	Bush	£9.40 £7.83
78	HP80065-Y10-003 Available to backorder	Spring	£2.80 £2.33
79	HP80066-Y10-003 Available to backorder	Washer	£1.21 £1.01
80	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
81	HP80143-Y09-003 In stock	Hub Cover	£1.85 £1.54
82	HP80067-Y10-003 Available to backorder	Ring	£1.18 £0.98
83	HP80068-Y10-003 Available to backorder	Bearing	£4.50 £3.75
84	HP80052-VJ5-003 Available to backorder	External Circlip 12Mm	£0.31 £0.26
85	HP80070-Y10-003 Available to backorder	Wheel Guard	£8.39 £6.99
86	HP80071-Y10-003 Available to backorder	Pinion L H	£18.77 £15.64
87	HP80072-Y10-003 Available to backorder	Pinion R H	£18.77 £15.64
88	HP80073-Y10-003HE Available to backorder	Gear Ring	£24.55 £20.46
89	HP80074-Y10-003 Available to backorder	Spacer	£3.40 £2.83
