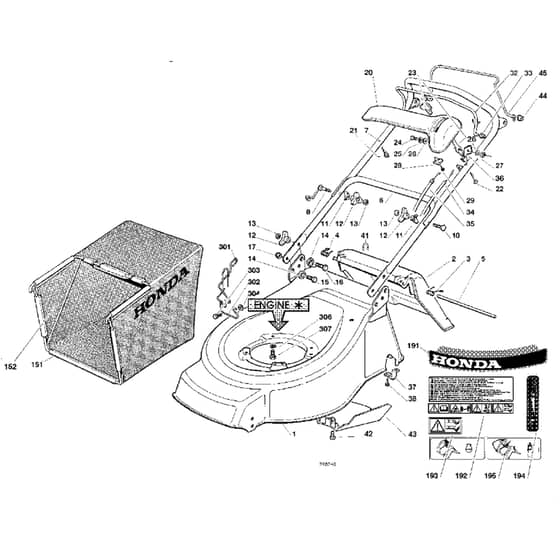

Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram

Name: Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram
SKU: hrg415csd_1999_sdt_mabf_8900001_8999999_cutter_housing_handle_gr
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415CSD (1999) - SDT - MABF 8900001-8999999 Cutter Housing/Handle/Grass Bag Diagram

Description

Honda HRG415CSD (1999) - SDT Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP80002-Y10-003 Available to backorder	Deck	£160.20 £133.50
2	HP80003-Y10-003 Available to backorder	Stone Guard	£47.88 £39.90
3	HP80004-Y10-003 Available to backorder	Spring L H	£7.46 £6.22
4	HP80005-Y10-003 Available to backorder	Spring R H	£7.46 £6.22
5	HP80006-Y10-003 Available to backorder	Pin	£13.12 £10.93
6	HP80007-Y10-003 Available to backorder	Lower Handle	£42.83 £35.69
8	HP80010-Y10-003 Available to backorder	Spring	£12.08 £10.07
10	HP80011-Y10-003 Available to backorder	Screw	£1.09 £0.91
11	HP90505-VP5-003 Available to backorder	Handle Joint Washer	£1.91 £1.59
12	HP80014-VE7-003 Available to backorder	Knob	£1.58 £1.32
13	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
15	HP80098-Y09-003 In stock	Screw	£1.24 £1.03
16	HP80058-Y09-003 Available to backorder	Screw	£2.81 £2.34
16	HP80014-Y10-003 Available to backorder	Screw	£0.96 £0.80
17	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
20	HP80015-Y10-003 Available to backorder	Dashboard	£57.84 £48.20
21	HP80016-Y10-003 Available to backorder	Screw	£3.48 £2.90
22	HP80070-Y09-003 Available to backorder	Screw	£1.08 £0.90
23	HP80017-Y10-003 Available to backorder	Lever & Knob Assy	£3.98 £3.32
24	HP80143-VK1-003 Available to backorder	Flange Bolt M6 X 20	£1.22 £1.02
25	HP80018-Y10-003 Available to backorder	Washer Spring	£1.94 £1.62
26	HP80034-Y09-003 Available to backorder	Washer	£1.00 £0.83
27	HP80008-Y09-003 Available to backorder	Nut	£4.08 £3.40
32	HPCG810-032-91H2 Available to backorder	Brake Lever	£98.14 £81.78
33	HP80024-Y10-003 Available to backorder	Bush	£1.48 £1.23
36	HP80027-Y10-003 Available to backorder	Plate	£5.62 £4.68
37	HP80028-Y10-003 Available to backorder	Plate	£9.83 £8.19
38	HP80029-Y10-003 Available to backorder	Screw	£1.25 £1.04
40	HPCG810-032-88H1 Available to backorder	Lever	£27.74 £23.12
42	HP80031-Y10-003 Available to backorder	Screw	£2.09 £1.74
43	HP80030-Y10-003 Available to backorder	Deck	£2.35 £1.96
44	HP80033-Y10-003 Available to backorder	Bush	£1.48 £1.23
152	HPCG810-086-14H2 Available to backorder	Screws	£26.96 £22.47
192	HP80080-VF4-003 Available to backorder	Decal	£4.80 £4.00
193	HP80105-Y09-003 Available to backorder	Decal	£3.96 £3.30
194	HP80038-Y10-003 Available to backorder	Decal	£3.02 £2.52
306	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
307	HP80087-Y09-003 Available to backorder	Screw	£4.24 £3.53
