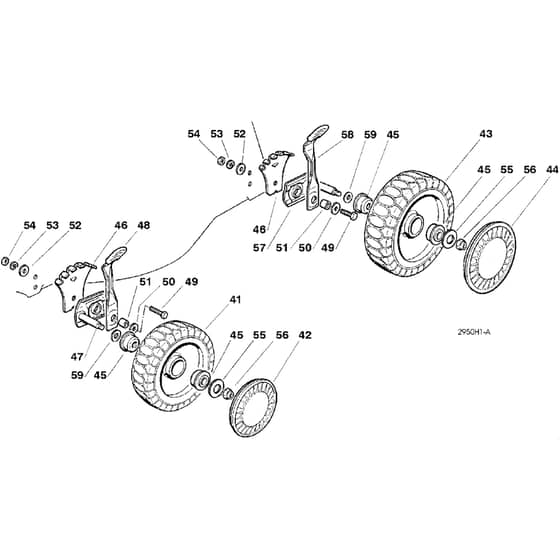

Honda HRG415CPD (2000) - PDU - MABF 8000001-8099999 Wheels and Height Adjusting Diagram

Name: Honda HRG415CPD (2000) - PDU - MABF 8000001-8099999 Wheels and Height Adjusting Diagram
SKU: hrg415cpd_2000_pdu_mabf_8000001_8099999_wheels_and_height_adjust
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415CPD (2000) - PDU - MABF 8000001-8099999 Wheels and Height Adjusting Diagram

Description

Honda HRG415CPD (2000) - PDU Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
41	HP80041-Y10-003 Available to backorder	Wheel	£34.01 £28.34
42	HP80042-Y10-003 Available to backorder	Hub Cap	£1.31 £1.09
43	HP80043-Y10-003 Available to backorder	Wheel	£34.01 £28.34
44	HP80044-Y10-003 Available to backorder	Hub Cap	£1.84 £1.53
45	HP80068-Y10-003 Available to backorder	Bearing	£4.57 £3.81
47	HP80047-Y10-003 Available to backorder	Wheel Support	£23.34 £19.45
48	HP80048-Y10-003 Available to backorder	Adjuster Lever	£8.11 £6.76
49	HP80058-Y09-003 Available to backorder	Screw	£2.81 £2.34
51	HP80050-Y10-003 Available to backorder	Spacer	£4.78 £3.98
52	HP80036-Y09-003 Available to backorder	Washer	£5.64 £4.70
53	HP80045-Y09-003 Available to backorder	Washer	£1.55 £1.29
54	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
55	HP80035-Y09-003 Available to backorder	Washer	£1.58 £1.32
56	HP80104-VK1-003 Available to backorder	Flange Nut 8Mm	£0.92 £0.77
57	HP80051-Y10-003 Available to backorder	Wheel Support	£23.34 £19.45
58	HP80053-Y10-003 Available to backorder	Adjuster Lever	£8.78 £7.32
