Honda HRG415CPD (2000) - PDF - MABF 8000001-8099999 Cutter Housing/Handle/Grass Bag Diagram

Name: Honda HRG415CPD (2000) - PDF - MABF 8000001-8099999 Cutter Housing/Handle/Grass Bag Diagram
SKU: hrg415cpd_2000_pdf_mabf_8000001_8099999_cutter_housing_handle_gr
Price: 0.4 GBP
Availability: InStock

Part No. hrg415cpd_2000_pdf_mabf_8000001_8099999_cutter_housing_handle_gr

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415CPD (2000) - PDF - MABF 8000001-8099999 Cutter Housing/Handle/Grass Bag Diagram

Description

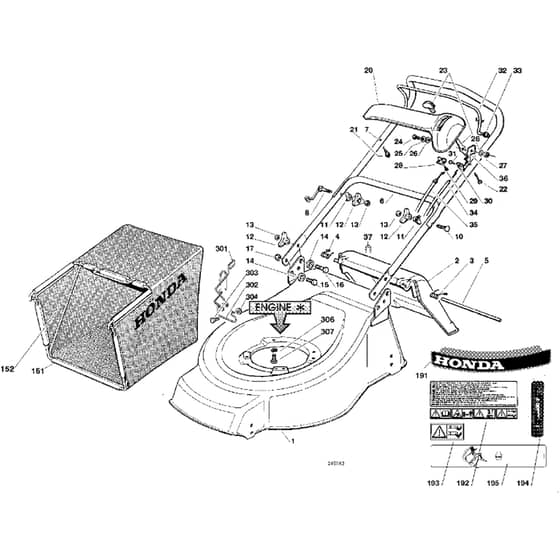

Honda HRG415CPD (2000) - PDF Rotary Mower Parts Diagram

	Part No.	Details
1	HP80001-Y10-003 Available to backorder	Deck	£158.64 £132.20
2	HP80003-Y10-003 Available to backorder	Stone Guard	£47.17 £39.31
3	HP80004-Y10-003 Available to backorder	Spring L H	£7.34 £6.12
4	HP80005-Y10-003 Available to backorder	Spring R H	£7.34 £6.12
5	HP80006-Y10-003 Available to backorder	Pin	£12.92 £10.77
6	HP80007-Y10-003 Available to backorder	Lower Handle	£42.19 £35.16
8	HP80010-Y10-003 Available to backorder	Spring	£11.90 £9.92
10	HP80011-Y10-003 Available to backorder	Screw	£1.08 £0.90
11	HP90505-VP5-003 Available to backorder	Handle Joint Washer	£1.82 £1.52
12	HP80014-VE7-003 Available to backorder	Knob	£1.51 £1.26
13	HP80001-VE7-003 Available to backorder	Nut	£0.48 £0.40
15	HP80098-Y09-003 Available to backorder	Screw	£1.28 £1.07
16	HP80014-Y10-003 Available to backorder	Screw	£0.95 £0.79
16	HP80058-Y09-003 Available to backorder	Screw	£2.76 £2.30
17	HP80104-VK1-003 In stock	Flange Nut 8Mm	£0.98 £0.82
20	HP80015-Y10-003 Available to backorder	Dashboard	£59.30 £49.42
21	HP80016-Y10-003 Available to backorder	Screw	£3.43 £2.86
22	HP80070-Y09-003 Available to backorder	Screw	£1.06 £0.88
23	HP80017-Y10-003 Available to backorder	Lever & Knob Assy	£3.92 £3.27
24	HP80143-VK1-003 Available to backorder	Flange Bolt M6 X 20	£1.21 £1.01
25	HP80018-Y10-003 Available to backorder	Washer Spring	£1.92 £1.60
26	HP80034-Y09-003 Available to backorder	Washer	£1.03 £0.86
27	HP80008-Y09-003 Available to backorder	Nut	£4.26 £3.55
30	HP80021-Y10-003 Available to backorder	Support	£3.40 £2.83
31	HP80022-Y10-003 Available to backorder	Screw	£1.04 £0.87
32	HPCG810-032-91H2 Available to backorder	Brake Lever	£98.16 £81.80
33	HP80024-Y10-003 Available to backorder	Bush	£1.45 £1.21
36	HP80027-Y10-003 Available to backorder	Plate	£5.53 £4.61
153	HPCG810-086-14H2 Available to backorder	Screws	£27.89 £23.24
192	HP80080-VF4-003 Available to backorder	Decal	£4.73 £3.94
193	HP80105-Y09-003 Available to backorder	Decal	£3.91 £3.26
194	HP80038-Y10-003 Available to backorder	Decal	£2.98 £2.48
195	HP80039-Y10-003 Available to backorder	Decal	£2.47 £2.06
302	HP18434-ZG1-U10 Available to backorder	Guard B Muffler	£6.29 £5.24
303	HP90061-161-000 Available to backorder	Flange Bolt	£3.85 £3.21
304	HP94101-06000 Available to backorder	Plain Washer 6Mm	£1.20 £1.00
306	HP80045-Y09-003 In stock	Washer	£1.55 £1.29
307	HP80087-Y09-003 Available to backorder	Screw	£4.18 £3.48
