Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Tranmission (SDEE Only) Diagram

Name: Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Tranmission (SDEE Only) Diagram
SKU: hrg415c3_izy_sdee_mabf_1400001_tranmission_sdee_only_-group
Price: 1.14 GBP
Availability: InStock

Part No. hrg415c3_izy_sdee_mabf_1400001_tranmission_sdee_only_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

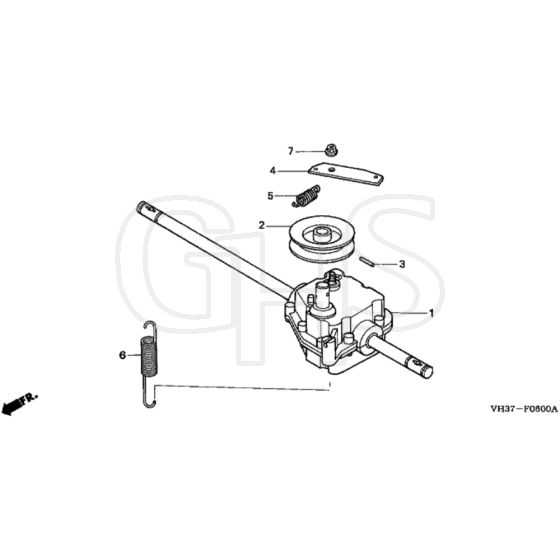

Honda HRG415C3 (IZY) - SDEE - MABF 1400001- Tranmission (SDEE Only) Diagram

Description

Honda HRG415C3 (IZY) - SDEE Rotary Mower Parts Diagram

	Part No.	Details

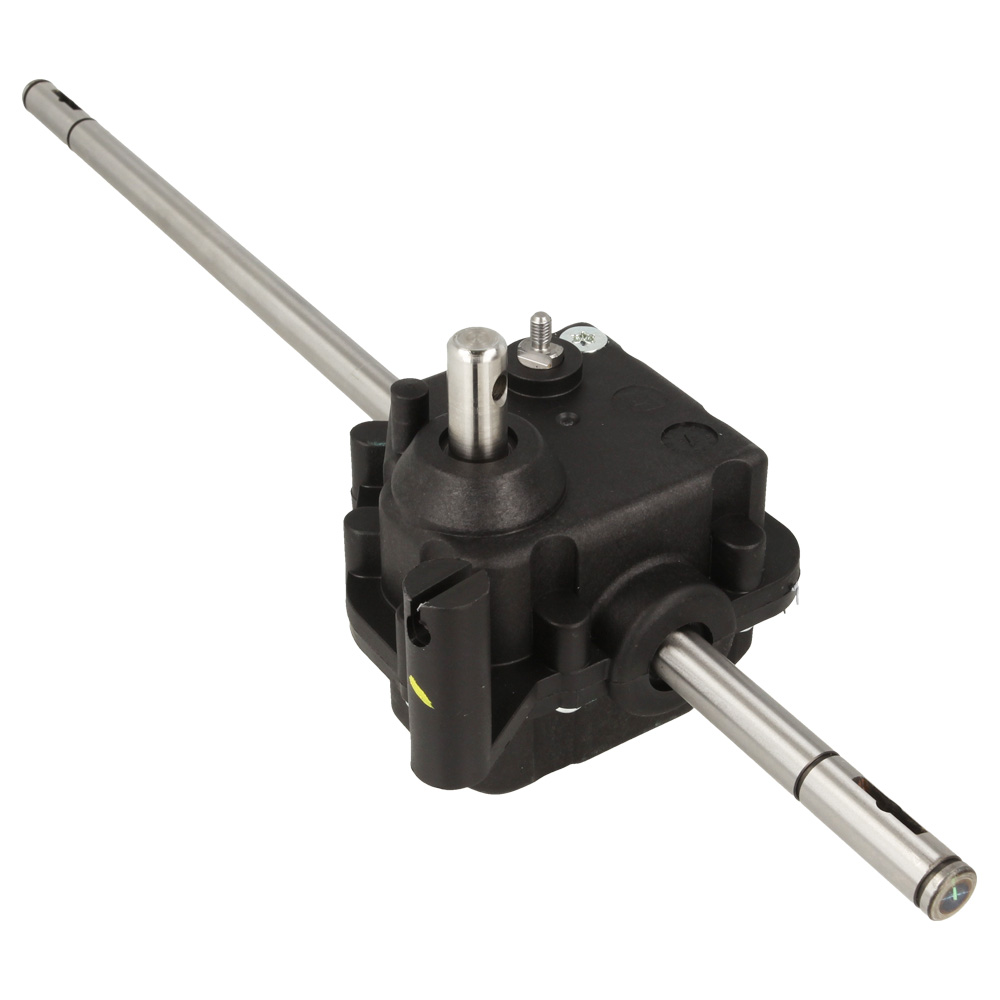

1	HP20010-VH3-852 Available to backorder	Transmission Assy	£225.96 £188.30
2	HP22420-VH3-851 In stock	Pulley	£23.23 £19.36
3	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
4	HP23436-VE0-851 Available to backorder	Clutch Arm	£16.62 £13.85
5	HP23439-VH3-851 Available to backorder	Return Spring	£4.24 £3.53
6	HP22534-VH3-N21 In stock	Tension Spring	£10.33 £8.61
7	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
