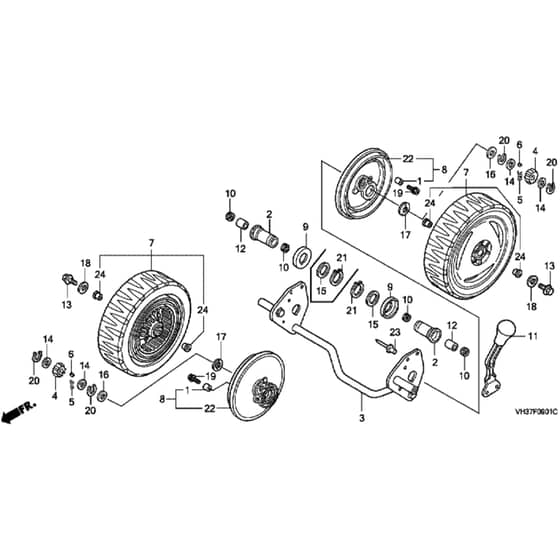

Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Name: Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram
SKU: hrg415c3_izy_pdee_mabf_1400001_rear_wheel_self_propelled_sdee_on
Price: 0.33 GBP
Availability: InStock

Part No. hrg415c3_izy_pdee_mabf_1400001_rear_wheel_self_propelled_sdee_on

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Self Propelled (SDEE Only) Diagram

Description

Honda HRG415C3 (IZY) - PDEE Rotary Mower Parts Diagram

	Part No.	Details
2	HP41418-VE0-800 Available to backorder	Drive Shaft Collar	£14.96 £12.47
3	HP42310-VH3-850 Available to backorder	Axle Shaft	£70.32 £58.60
4	HP42661-VH3-850 In stock	Pinion Gear	£7.58 £6.32
5	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
6	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
7	HP42710-VH3-850ZB Available to backorder	Wheel	£37.24 £31.03
9	HP42868-VA9-K40 Available to backorder	Wheel Cap	£1.57 £1.31
10	HP42944-VA2-702 Available to backorder	Dust Seal 12Mm	£7.68 £6.40
11	HP42960-VH3-N10ZA In stock	Rear Height Lever Assy	£28.76 £23.97
12	HP44327-VH3-Y10 Available to backorder	Drive Shaft Bush	£13.09 £10.91
13	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
14	HP90452-166-600 In stock	Washer	£0.40 £0.33
15	HP90502-VH3-N20 Available to backorder	Thrust Washer	£4.74 £3.95
16	HP90459-360-000 Available to backorder	Thrust Washer	£3.60 £3.00
17	HP90505-VA9-K40 In stock	Washer 13Mm	£2.20 £1.83
18	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.24 £3.53
20	HP94510-12000 In stock	External Circlip 12Mm	£1.19 £0.99
21	HP94510-20000 Available to backorder	External Circlip 20Mm	£1.72 £1.43
22	HP42866-VE0-800 Available to backorder	Wheel Cover	£5.18 £4.32
23	HP90842-VH3-N10 Available to backorder	Rivet 6Mm	£2.94 £2.45
24	HP42716-VE0-800 In stock	Wheel Bush	£3.97 £3.31
