Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Push (PDEE only) Diagram

Name: Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Push (PDEE only) Diagram
SKU: hrg415c3_izy_pdee_mabf_1400001_rear_wheel_push_pdee_only_-group
Price: 0.47 GBP
Availability: InStock

Part No. hrg415c3_izy_pdee_mabf_1400001_rear_wheel_push_pdee_only_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Rear Wheel - Push (PDEE only) Diagram

Description

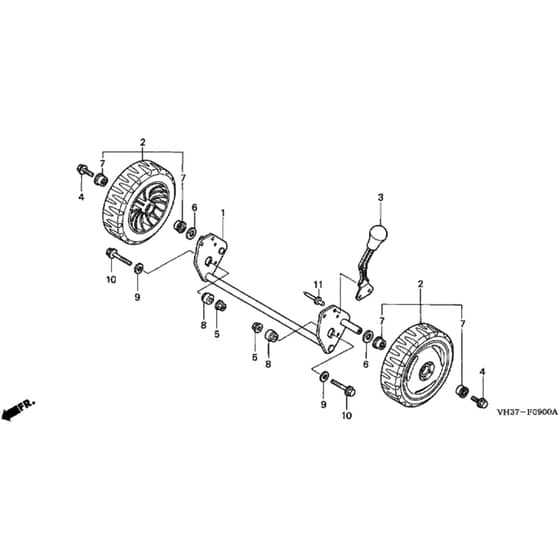

Honda HRG415C3 (IZY) - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42310-VH3-000 Available to backorder	Shaft	£60.52 £50.43
2	HP42710-VH3-000ZB Available to backorder	Rear Wheel	£47.66 £39.72
3	HP42960-VH3-N10ZA In stock	Rear Height Lever Assy	£28.76 £23.97
4	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
5	HP90115-659-003 In stock	Nut	£1.19 £0.99
6	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
7	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
8	HP91554-VH3-000 Available to backorder	Collar	£5.09 £4.24
9	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
10	HP93201-080-300A Available to backorder	Bolt	£1.55 £1.29
11	HP90842-VH3-N10 Available to backorder	Rivet 6Mm	£2.94 £2.45
