Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Front Wheel Diagram

Name: Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Front Wheel Diagram
SKU: hrg415c3_izy_pdee_mabf_1400001_front_wheel-group
Price: 0.99 GBP
Availability: InStock

Part No. hrg415c3_izy_pdee_mabf_1400001_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

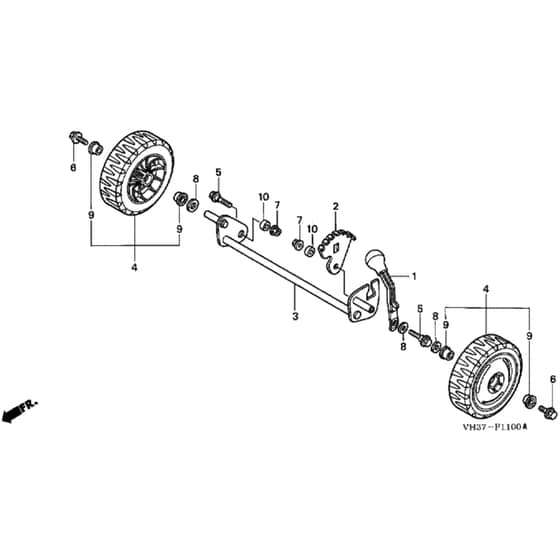

Honda HRG415C3 (IZY) - PDEE - MABF 1400001- Front Wheel Diagram

Description

Honda HRG415C3 (IZY) - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42950-VH3-N10ZA Available to backorder	Front Height Lever Assy	£16.88 £14.07
3	HP44310-VH3-000 Available to backorder	Axle	£48.11 £40.09
4	HP44710-VH3-000ZB Available to backorder	Front Wheel	£47.66 £39.72
5	HP90103-VG3-010 Available to backorder	Adjuster Arm Bolt	£4.03 £3.36
6	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
7	HP90115-659-003 In stock	Nut	£1.19 £0.99
8	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
9	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
