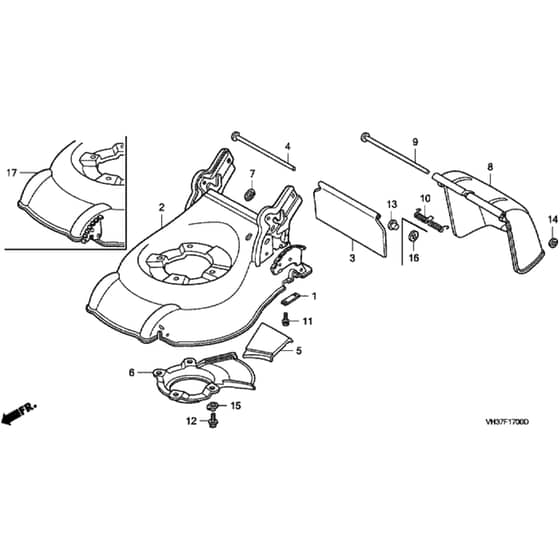

Honda HRG415C2 (IZY) - SDEE - MABF 1100001-1204924 Cutter Housing Diagram

Name: Honda HRG415C2 (IZY) - SDEE - MABF 1100001-1204924 Cutter Housing Diagram
SKU: hrg415c2_izy_sdee_mabf_1100001_1204924_cutter_housing-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRG415C2 (IZY) - SDEE - MABF 1100001-1204924 Cutter Housing Diagram

Description

Honda HRG415C2 (IZY) - SDEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42938-VH3-850 Available to backorder	Axle Holder	£1.34 £1.12
3	HP76118-VH3-010 Available to backorder	Shield	£12.02 £10.02
4	HP76138-VH3-000 Available to backorder	Rear Shield Shaft	£20.52 £17.10
5	HP76143-VH3-010 Available to backorder	Guide Plate	£10.66 £8.88
6	HP76147-VH3-010 Available to backorder	Roto-Stop Cover	£35.64 £29.70
7	HP91651-VH3-850 Available to backorder	Cable Grommet	£1.57 £1.31
8	HP76281-VH3-010ZA Available to backorder	Discharge Guard	£34.86 £29.05
9	HP76282-VH3-000 Available to backorder	Discharge Guard Shaft	£4.92 £4.10
10	HP76284-VH3-000 Available to backorder	Guard Return Spring	£8.58 £7.15
11	HP93904-35210 Available to backorder	Self Tapping Screw	£1.86 £1.55
12	HP90102-VA4-000 Available to backorder	Engine Setting Bolt	£3.67 £3.06
13	HP90301-VA3-J01 Available to backorder	Push Nut	£2.68 £2.23
14	HP90407-VA9-K40 In stock	Special Washer 8Mm	£1.68 £1.40
15	HP90501-VH3-000 Available to backorder	Roto Stop Cover Washer	£1.93 £1.61

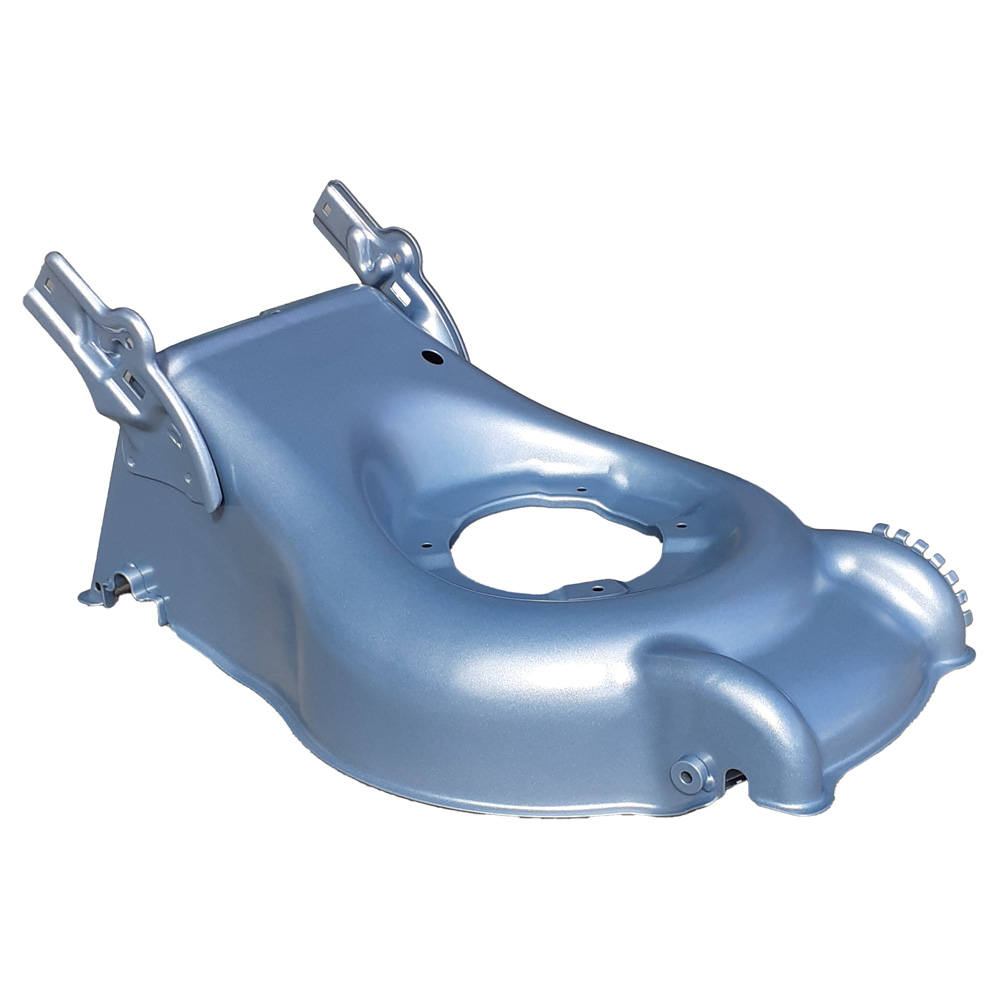

17	HP76110-VH3-010ZA Available to backorder	Mower Housing	£200.16 £166.80
17	HP76110-VH3-851ZA Available to backorder	Mower Housing	£205.20 £171.00
