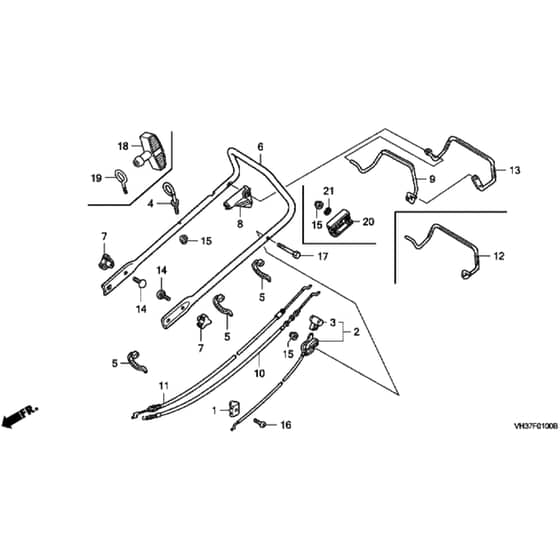

Honda HRG415C2 (IZY) - SDE - MAAF 1100001-9999999 Handle Pipe Diagram

Description

Honda HRG415C2 (IZY) - SDE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16617-VG3-000 In stock	Cable Holder	£1.81 £1.51
2	HP17850-VH3-003 In stock	Throttle Lever Assy	£27.96 £23.30
3	HP17853-VH3-000 Available to backorder	Throttle Lever Grip	£12.42 £10.35
4	HP28475-VG3-000 Available to backorder	Rope Guide	£4.38 £3.65
5	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
6	HP53111-VH3-000ZA Available to backorder	Upper Handle	£57.84 £48.20
7	HP53125-VH3-013 In stock	Handle Grip	£3.92 £3.27
7	HP53125-VA3-680 In stock	Handle Grip	£12.72 £10.60
8	HP54315-VH3-000 In stock	Lever Stopper	£4.82 £4.02
9	HP54415-VH3-851ZB Available to backorder	Clutch Lever	£19.87 £16.56
10	HP54510-VH3-852 In stock	Clutch Cable	£34.36 £28.63
11	HP54530-VH3-003 In stock	Brake Cable Assy	£14.76 £12.30
11	HP54530-VH3-004 In stock	Brake Cable	£14.76 £12.30
12	HP75191-VH3-010ZB Available to backorder	Brake Lever	£25.08 £20.90
13	HP75191-VH3-851ZA Available to backorder	Brake Lever	£30.72 £25.60
14	HP90133-VH4-000 In stock	Pan Head Bolt 8 X 30	£1.76 £1.47
15	HP90303-VG3-000 Available to backorder	Lock Nut 6Mm	£0.74 £0.62
16	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.50 £1.25
17	HP95701-0605500 Available to backorder	Flange Bolt 6 X 55	£1.96 £1.63
17	HP93201-060550A Available to backorder	Bolt	£0.14 £0.12
19	HP28475-VK8-010 Available to backorder	Rope Guide	£4.45 £3.71
