Honda HRG415C2 (IZY) - PDE - MAAF 1100001-9999999 Flywheel/Ignition Coil Diagram

Description

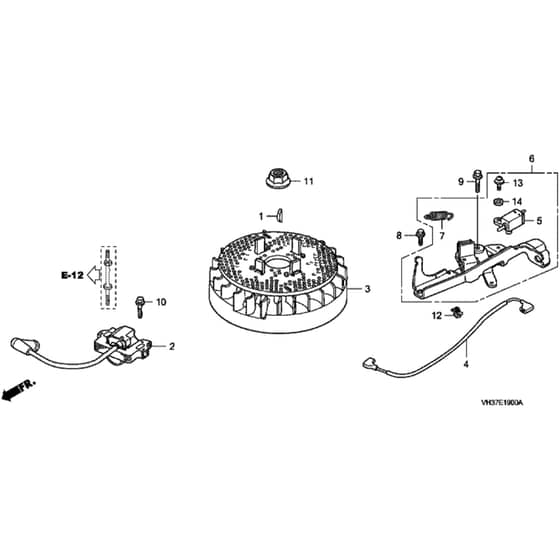

Honda HRG415C2 (IZY) - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
3	HP31105-ZM1-000 Available to backorder	Flywheel Assy	£77.64 £64.70
4	HP32195-ZM0-000 Available to backorder	Stop Switch	£11.09 £9.24
5	HP35120-ZM0-003 Available to backorder	Engine Stop Switch Assy	£12.23 £10.19
6	HP75100-ZM0-000 Available to backorder	Brake Assy	£51.14 £42.62
7	HP75113-ZM0-000 Available to backorder	Spring	£2.72 £2.27
8	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
9	HP90018-ZE1-000 Available to backorder	Flange Bolt	£2.96 £2.47
10	HP90022-888-010 Available to backorder	Flange Bolt 6 X 20	£2.74 £2.28
11	HP90201-878-003 Available to backorder	Speical Nut 14Mm	£7.09 £5.91
12	HP90681-959-003 Available to backorder	Cable Clip	£0.97 £0.81
13	HP93892-0401200 Available to backorder	Screw	£1.51 £1.26
14	HP94103-040-00 Available to backorder	Washer 4Mm	£0.89 £0.74
