Honda HRG415C1 (IZY) - PDEE - MABF 1000001-1099999 Handle Pipe Diagram

Description

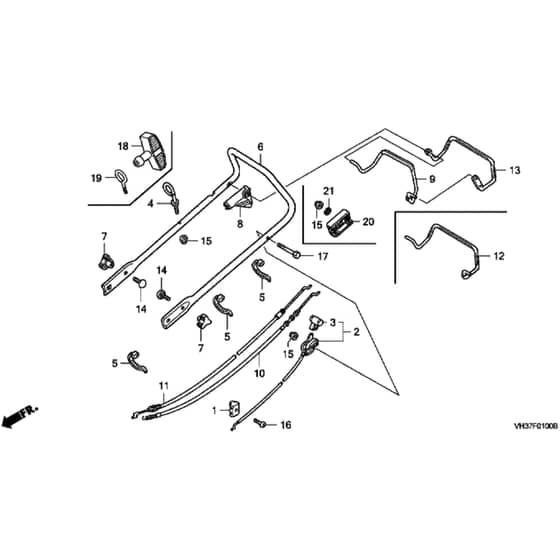

Honda HRG415C1 (IZY) - PDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16617-VG3-000 Available to backorder	Cable Holder	£1.84 £1.53
2	HP17850-VH3-003 In stock	Throttle Lever Assy	£30.54 £25.45
3	HP17853-VH3-000 Available to backorder	Throttle Lever Grip	£12.23 £10.19
4	HP28475-VG3-000 Available to backorder	Rope Guide	£4.32 £3.60
5	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
6	HP53111-VH3-000ZA Available to backorder	Upper Handle	£59.30 £49.42
7	HP53125-VA3-680 In stock	Joint Nut	£13.85 £11.54
8	HP54315-VH3-000 In stock	Bar Lever Stopper	£5.42 £4.52
11	HP54530-VH3-003 In stock	Engine Brake Cable	£16.08 £13.40
12	HP75191-VH3-010ZB Available to backorder	Brake Lever	£24.71 £20.59
14	HP90133-VH4-000 In stock	Handle Bar Bolt	£1.90 £1.58
15	HP90303-VG3-000 In stock	Lock Nut 6mm	£0.80 £0.67
16	HP93500-05016-0A Available to backorder	Pan Head Screw 5 X 16	£1.51 £1.26
17	HP95701-0605500 Available to backorder	Flange Bolt	£2.03 £1.69
