Honda HRD536K4 - QXEH - MZBL 8300001- Rotary Blade Diagram

Description

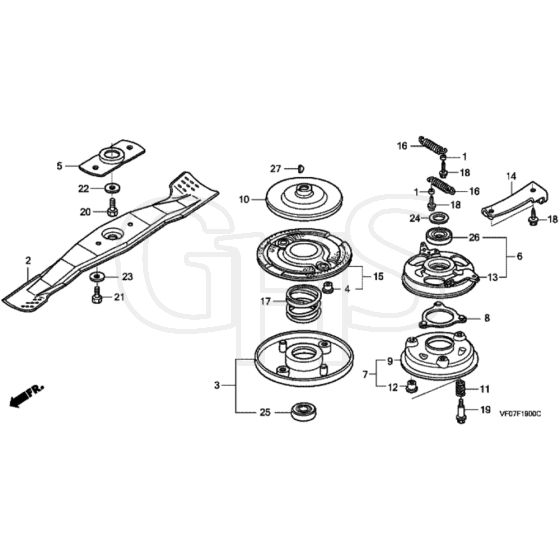

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP19512-883-000 Available to backorder	Fan Collar	£2.21 £1.84
2	HP72511-VG0-C51 In stock	Blade	£52.20 £43.50
3	HP72600-VF0-750 In stock	Blade Holder Assy	£84.30 £70.25
4	HP72613-VA4-000 Available to backorder	Blade Holder Bush	£5.95 £4.96
5	HP72615-VA5-841 Available to backorder	Blade Holder Plate	£17.63 £14.69
6	HP75090-VA4-030 Available to backorder	Ball Control Plate	£141.84 £118.20
7	HP75100-VA4-010 In stock	Brake Assy	Was £140.06 £116.72 Special Price £83.02 £69.18
8	HP75110-VA4-000 Available to backorder	Ball Retainer	£11.10 £9.25
9	HP75120-VA4-010 In stock	Brake Disk	Was £117.00 £97.50 Special Price £35.99 £29.99
10	HP75130-VA4-000 Available to backorder	Drive Disk	£118.32 £98.60
11	HP75132-VA4-000 Available to backorder	Brake Holder Spring	£3.58 £2.98
12	HP75133-VA4-000 Available to backorder	Brake Holder Bush	£4.91 £4.09
13	HP75140-VA4-020 Available to backorder	Ball Control Plate	£112.20 £93.50
14	HP75142-VB3-803 Available to backorder	Cable Hook Plate	£7.30 £6.08
15	HP75150-VA3-J01 Available to backorder	Driven Disk Assy	£107.28 £89.40
16	HP75182-VA3-J00 Available to backorder	Clutch Return Spring	£6.80 £5.67
17	HP75183-VA3-J00 Available to backorder	Clutch Spring	£16.19 £13.49
18	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
19	HP90021-VA4-000 Available to backorder	Special Bolt 6mm	£5.41 £4.51
20	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
21	HP90105-VH3-K11 In stock	Flange Bolt 10 X 20	£2.99 £2.49
22	HP90409-952-000 In stock	Washer 10mm	£1.21 £1.01
23	HP90481-430-000 In stock	Washer	£1.28 £1.07
24	HP90501-952-010 Available to backorder	Thrust Washer	£5.44 £4.53
25	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
26	HP91103-VA4-003 Available to backorder	Bearing	£23.29 £19.41
27	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
