Honda HRD536K4 - QXEH - MZBL 8300001- Joint Diagram

Name: Honda HRD536K4 - QXEH - MZBL 8300001- Joint Diagram
SKU: hrd536k4_qxeh_mzbl_8300001_joint_qxeh_-group
Price: 0.74 GBP
Availability: InStock

Part No. hrd536k4_qxeh_mzbl_8300001_joint_qxeh_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K4 - QXEH - MZBL 8300001- Joint Diagram

Description

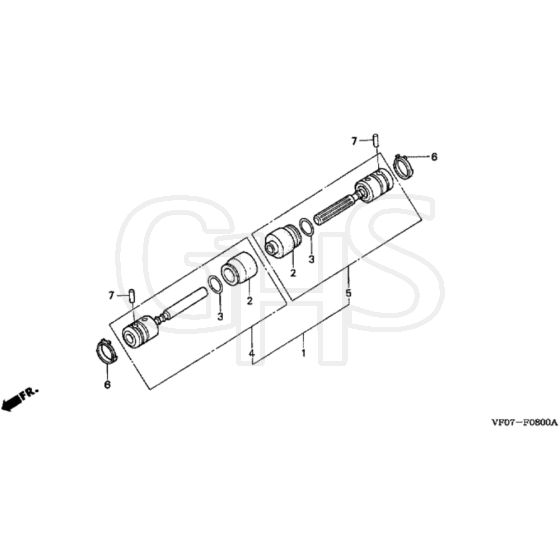

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP22100-VB3-806 Available to backorder	Joint Assy	£237.96 £198.30

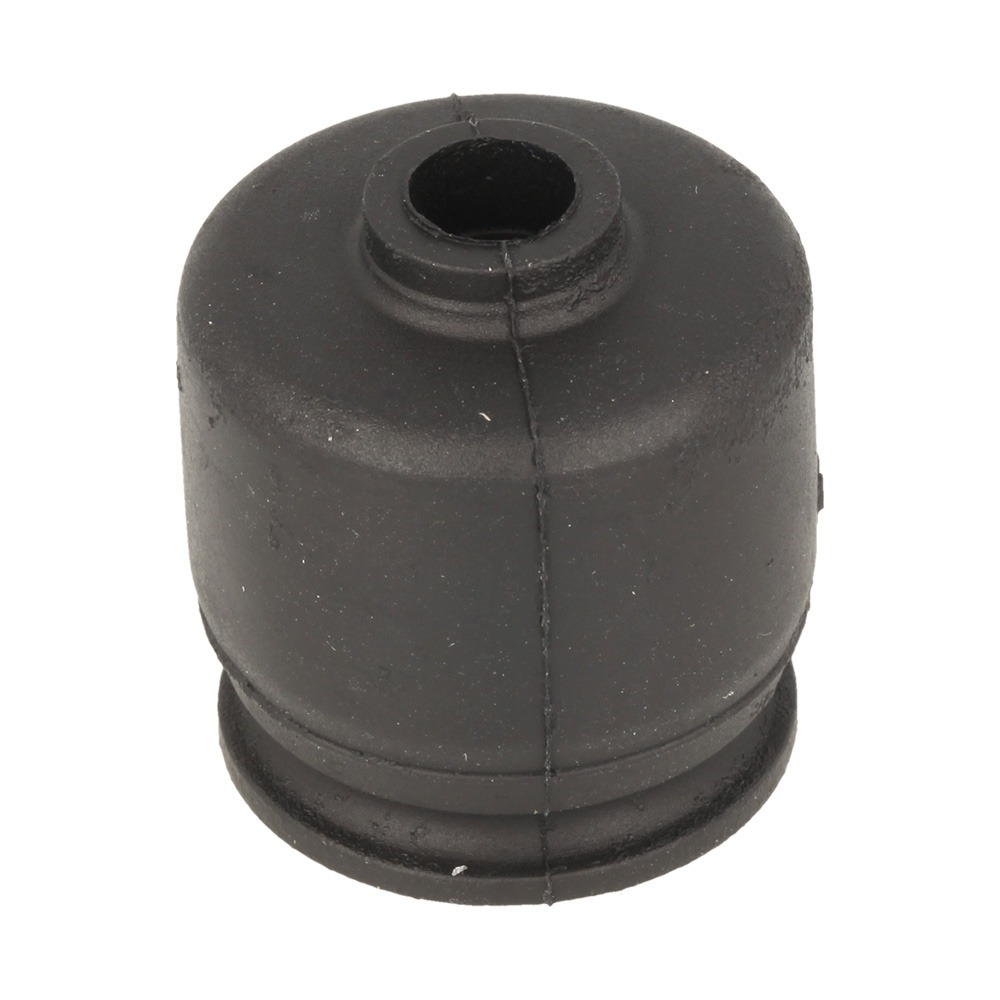

2	HP22123-VK6-004 In stock	Boot Joint	£13.42 £11.18

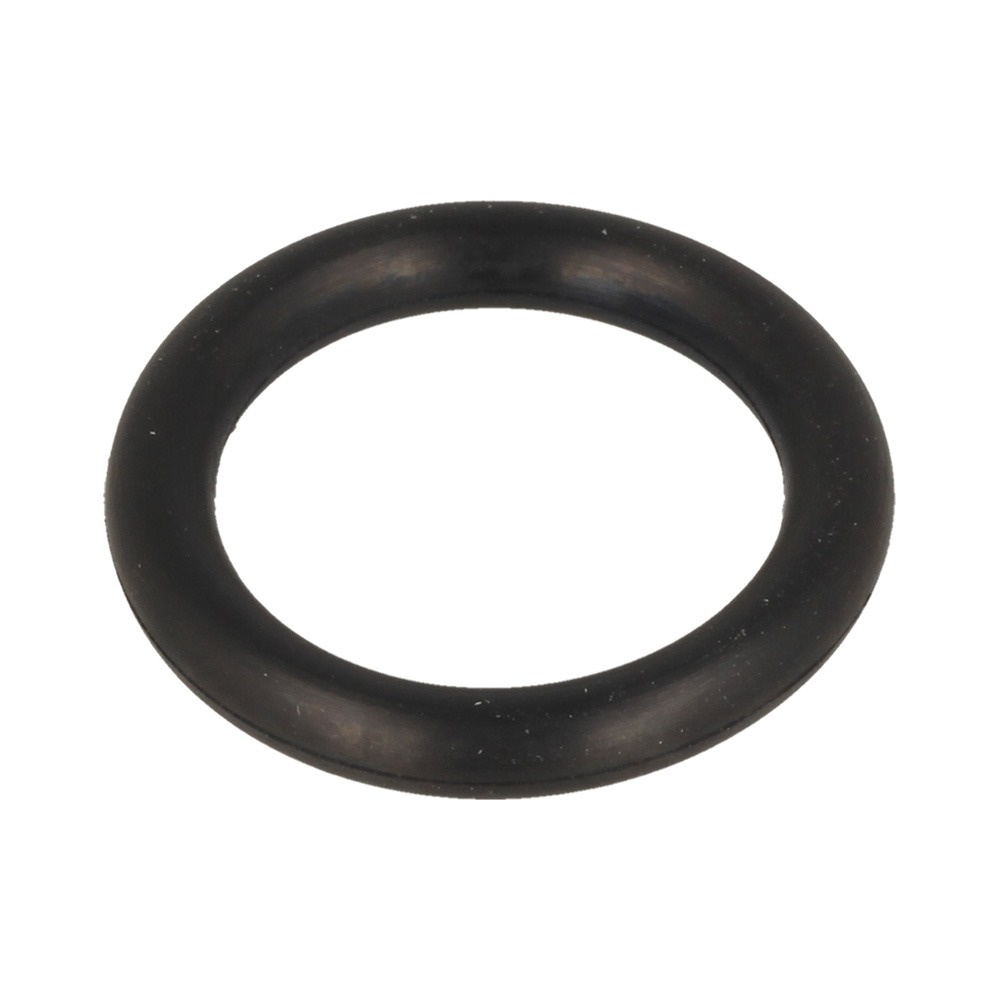

3	HP22127-VK6-004 Available to backorder	Seal Ring	£3.23 £2.69
4	HP22150-VB3-806 Available to backorder	Joint Sub Assy A	£79.92 £66.60
5	HP22160-VB3-806 Available to backorder	Joint Sub Assy B	£150.00 £125.00
6	HP23435-VA2-701 In stock	Clutch Shaft Clip	£6.31 £5.26
7	HP96220-40178 In stock	Pin 4 X 17.8	£0.89 £0.74
