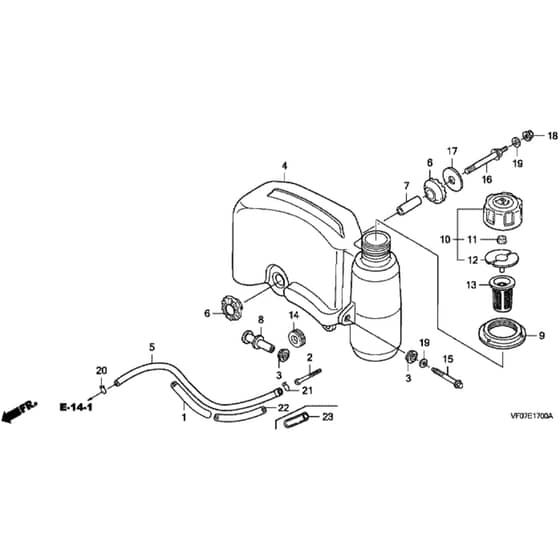

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Support Rubber	£3.72 £3.10
2	HP16952-Z1V-000 Available to backorder	Fuel Strainer	£8.23 £6.86
3	HP17506-ZE7-000 Available to backorder	Tank Cushion Rubber	£3.08 £2.57
4	HP17510-Z1V-010 Available to backorder	Fuel Tank	£123.60 £103.00
5	HP17512-ZE7-010 In stock	Fuel Pipe	£25.19 £20.99
6	HP17516-896-700 Available to backorder	Rubber Mount	£6.94 £5.78
7	HP17518-Z1V-000 Available to backorder	Collar Set	£8.89 £7.41
8	HP17519-Z1V-000 Available to backorder	Tank Collar	£8.89 £7.41
9	HP17532-Z1V-000 Available to backorder	Rubber Mount	£10.62 £8.85
10	HP17620-Z1V-000 Available to backorder	Fuel Cap	£12.04 £10.03
11	HP17622-888-010 In stock	Breather Sponge	£1.63 £1.36
12	HP17624-ZE7-000 In stock	Fuel Cap Gasket	£3.55 £2.96
13	HP17636-Z1V-010 Available to backorder	Fuel Level Gauge	£13.90 £11.58
14	HP80103-MG2-000 Available to backorder	Cushion	£6.14 £5.12
15	HP90014-Z1V-000 Available to backorder	Flange Bolt 6 X 47	£3.50 £2.92
16	HP90016-Z1V-000 Available to backorder	Bolt	£11.89 £9.91
17	HP90455-896-700 Available to backorder	Washer	£5.26 £4.38
18	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
20	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
21	HP95002-70000 Available to backorder	Tube Clip	£1.06 £0.88
23	HP95003-250-1020S Available to backorder	Tube	£1.20 £1.00
