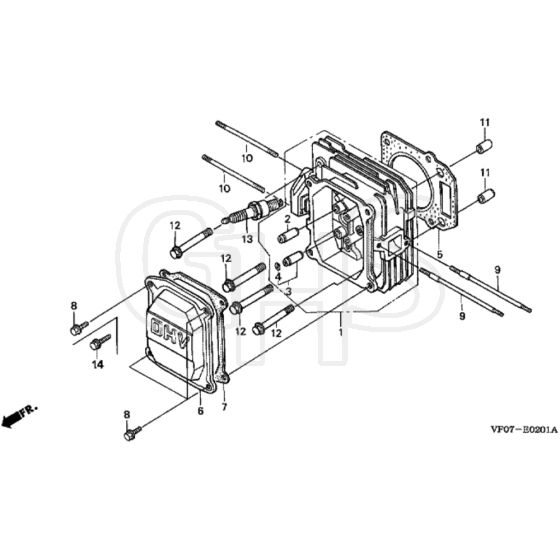

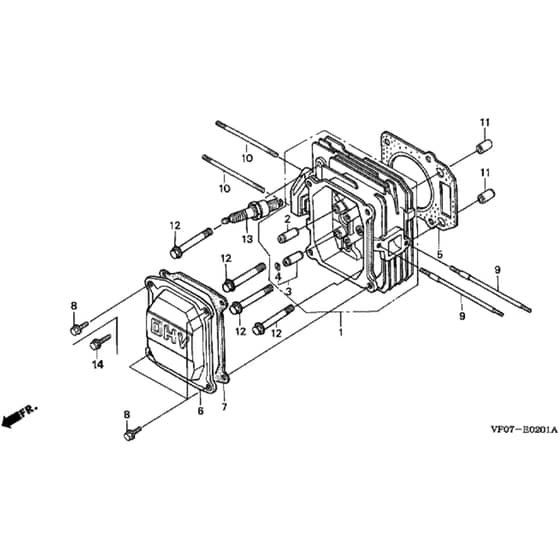

Honda HRD536K4 - QXEH - MZBL 8300001- Cylinder Head Diagram

Name: Honda HRD536K4 - QXEH - MZBL 8300001- Cylinder Head Diagram
SKU: hrd536k4_qxeh_mzbl_8300001_cylinder_head-group
Price: 1.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K4 - QXEH - MZBL 8300001- Cylinder Head Diagram

Description

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12200-ZE7-405 Available to backorder	Cylinder Head Assy	£212.04 £176.70
2	HP12204-ZE1-306 Available to backorder	Inlet Valve Guide	£11.17 £9.31
3	HP12205-ZE1-315 Available to backorder	Exhaust Valve Guide	£12.60 £10.50
4	HP12216-ZE5-300 Available to backorder	Valve Guide Clip	£3.70 £3.08
5	HP12251-ZE7-000 In stock	Cylinder Head Gasket (up to eng no. 1453288)	£8.40 £7.00
5	HP12251-Z1V-003 Available to backorder	Cylinder Head Gasket (eng no. 1453289 +)	£14.29 £11.91
6	HP12311-ZG9-800 Out of stock	Rocker Cover	£23.16 £19.30
7	HP12391-ZE7-M10 In stock	Rocker Cover Gasket	Was £15.44 £12.87 Special Price £9.59 £7.99
8	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
9	HP90043-ZE6-000 Available to backorder	Stud	£6.23 £5.19
10	HP90048-ZC3-000 Available to backorder	Stud 6 X 85	£5.16 £4.30
11	HP94301-10160 Available to backorder	Dowel Pin 10 X 16	£3.84 £3.20
12	HP95701-0805000 Available to backorder	Bolt	£2.35 £1.96
13	7230 In stock	Spark Plug	£3.59 £2.99
13	2136 In stock	Spark Plug	£2.10 £1.75
13	HP98079-56855 Available to backorder	Spark Plug	£5.12 £4.27
13	2135 In stock	Spark Plug	£2.30 £1.92
13	HP98079-55855 Available to backorder	Spark Plug	£5.12 £4.27
14	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
