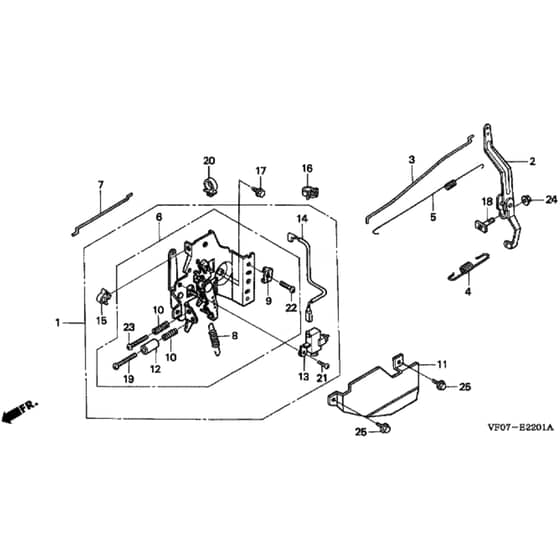

Honda HRD536K4 - QXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP16500-ZE7-W31 Available to backorder	Control Assy	£105.00 £87.50
2	HP16551-ZE7-000 Available to backorder	Governor Arm	£20.96 £17.47
3	HP16555-ZE7-000 Available to backorder	Governor Rod	£5.93 £4.94
4	HP16561-ZE7-020 Available to backorder	Governor Spring	£4.66 £3.88
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.76 £4.80
6	HP16570-ZE7-W10 Available to backorder	Control	£61.44 £51.20
7	HP16573-ZE7-000 Available to backorder	Choke Rod	£3.80 £3.17
8	HP16576-ZE7-300 Available to backorder	Lever Spring	£4.46 £3.72
9	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
10	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.80 £4.00
11	HP16585-ZE7-000 Available to backorder	Control Protector	£22.10 £18.42
12	HP16599-ZG1-M10 Available to backorder	Stopper Collar	£2.62 £2.18
13	HP36100-ZE7-013 In stock	Engine Stop Switch Assy	£31.99 £26.66
14	HP36101-ZE7-020 Available to backorder	Cord	£14.89 £12.41
15	HP36103-ZE1-000 Available to backorder	Stop Switch Cord Holder	£2.66 £2.22
16	HP46392-SC2-003 Available to backorder	Brake Clamp (up to eng no. 1446521)	£7.15 £5.96
16	HP46392-Z1V-003 Available to backorder	Harness Clamp (eng no. 1446522 +)	£2.78 £2.32
17	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
18	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
19	HP90016-ZE7-W00 Available to backorder	Recessed Screw	£4.57 £3.81
20	HP90659-Z1V-003 Available to backorder	Clip (up to eng no. 1446686)	£1.81 £1.51
20	HP90659-680-013 Available to backorder	Clip (eng no. 1446687 +)	£6.74 £5.62
21	HP93500-040080A Available to backorder	Screw	£1.51 £1.26
22	HP93500-050160A Available to backorder	Screw Pan 5 X 16	£1.51 £1.26
23	HP93500-050200A Available to backorder	Screw Pan 5 X 20	£1.51 £1.26
24	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
25	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
