Honda HRD536K4 - HXEH - MZBL 8300001- Rotary Blade Diagram

Name: Honda HRD536K4 - HXEH - MZBL 8300001- Rotary Blade Diagram
SKU: hrd536k4_hxeh_mzbl_8300001_rotary_blade_hxeh_-group
Price: 0.29 GBP
Availability: InStock

Part No. hrd536k4_hxeh_mzbl_8300001_rotary_blade_hxeh_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K4 - HXEH - MZBL 8300001- Rotary Blade Diagram

Description

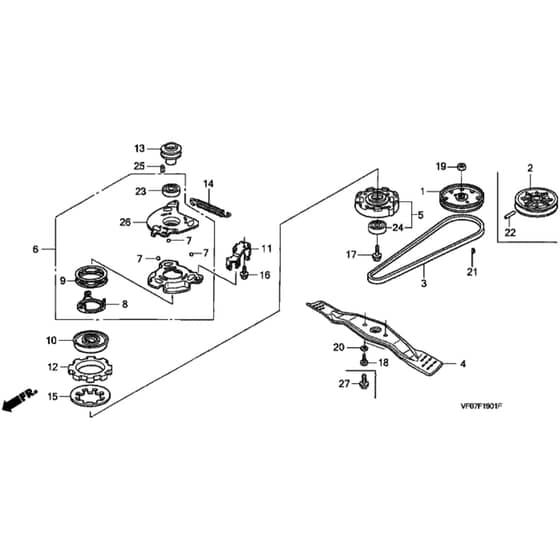

Honda HRD536K4 - HXEH Rotary Mower Parts Diagram

	Part No.	Details
1	HP22420-VE2-J00 Available to backorder	Pulley	£57.22 £47.68
3	HP22431-VE2-J00 Available to backorder	Belt	£28.97 £24.14
4	HP72511-VG0-C51 In stock	Blade	£52.20 £43.50
5	HP72600-VE1-G00 Available to backorder	Blade Holder Assy	£71.04 £59.20
6	HP75110-VE1-R00 Available to backorder	Ball Control Plate	£88.92 £74.10
7	HP75117-VE1-G00 Available to backorder	Bearing	£3.42 £2.85
8	HP75127-VE1-G00 Available to backorder	Spring Hook Plate	£13.38 £11.15
9	HP75132-VE1-G00 Available to backorder	Spring	£10.45 £8.71
10	HP75141-VE1-G00 Available to backorder	Drive Disk	£29.60 £24.67
11	HP75143-VF1-A50 Available to backorder	Spring Hook	£34.78 £28.98
12	HP75150-VE1-G02 In stock	Driven Disk Assy	£74.24 £61.87
13	HP75162-VF1-A50 Available to backorder	Pulley	£33.16 £27.63
14	HP75185-VE1-G00 In stock	Clutch Return Spring	£12.35 £10.29
15	HP75183-VE1-G01 In stock	Clutch Spring	£9.74 £8.12
16	HP90022-888-010 Available to backorder	Flange Bolt 6 X 20	£2.74 £2.28
17	HP90101-VE1-G00 Available to backorder	Flange Bolt 10 X 24	£2.80 £2.33
18	HP90105-VH3-K11 In stock	Flange Bolt 10 X 20	£2.99 £2.49
19	HP90304-GA6-003 Available to backorder	Nut	£5.09 £4.24
20	HP90481-430-000 In stock	Washer	£1.28 £1.07
21	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
24	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
25	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
26	HP75111-VE1-G01 Available to backorder	Control Plate	£16.94 £14.12
