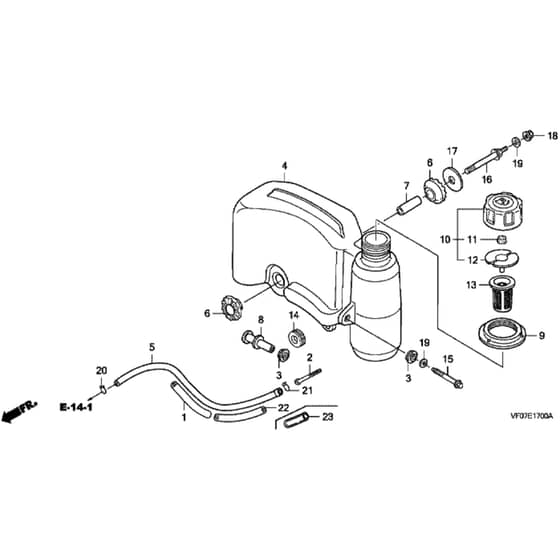

Honda HRD536K4 - HXEH - MZBL 8300001- Fuel Tank Diagram

Name: Honda HRD536K4 - HXEH - MZBL 8300001- Fuel Tank Diagram
SKU: hrd536k4_hxeh_mzbl_8300001_fuel_tank-group
Price: 0.87 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K4 - HXEH - MZBL 8300001- Fuel Tank Diagram

Description

Honda HRD536K4 - HXEH Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16854-ZH8-000 Available to backorder	Support Rubber	£3.70 £3.08
2	HP16952-Z1V-000 Available to backorder	Fuel Strainer	£7.96 £6.63
3	HP17506-ZE7-000 Available to backorder	Tank Cushion Rubber	£3.05 £2.54
4	HP17510-Z1V-010 Available to backorder	Fuel Tank	£121.68 £101.40
5	HP17512-ZE7-010 In stock	Fuel Pipe	£23.50 £19.58
6	HP17516-896-700 Available to backorder	Rubber Mount	£6.86 £5.72
7	HP17518-Z1V-000 Available to backorder	Collar Set	£8.81 £7.34
8	HP17519-Z1V-000 Available to backorder	Tank Collar	£8.81 £7.34
9	HP17532-Z1V-000 Available to backorder	Rubber Mount	£10.52 £8.77
10	HP17620-Z1V-000 Available to backorder	Fuel Cap	£11.93 £9.94
11	HP17622-888-010 In stock	Breather Sponge	£1.50 £1.25
12	HP17624-ZE7-000 Available to backorder	Fuel Cap Gasket	£3.40 £2.83
13	HP17636-Z1V-010 Available to backorder	Fuel Level Gauge	£13.76 £11.47
14	HP80103-MG2-000 Available to backorder	Cushion	£6.08 £5.07
15	HP90014-Z1V-000 Available to backorder	Flange Bolt 6 X 47	£3.47 £2.89
16	HP90016-Z1V-000 Available to backorder	Bolt	£11.78 £9.82
17	HP90455-896-700 Available to backorder	Washer	£5.21 £4.34
18	HP94050-06000 In stock	Flange Nut 6mm	£3.22 £2.68
20	HP95002-02080 Available to backorder	Tube Clip	£1.08 £0.90
21	HP95002-70000 Available to backorder	Tube Clip	£1.04 £0.87
23	HP95003-250-1020S Available to backorder	Tube	£1.16 £0.97
