Honda HRD536K3 - HXE - MZBL 8200001-8299999 Recoil Starter Diagram (Plastic Pawl)

Name: Honda HRD536K3 - HXE - MZBL 8200001-8299999 Recoil Starter Diagram (Plastic Pawl)
SKU: hrd536k3_hxe_mzbl_8200001_8299999_recoil_starter_1_-group
Price: 0.91 GBP
Availability: InStock

Part No. hrd536k3_hxe_mzbl_8200001_8299999_recoil_starter_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K3 - HXE - MZBL 8200001-8299999 Recoil Starter Diagram (Plastic Pawl)

Description

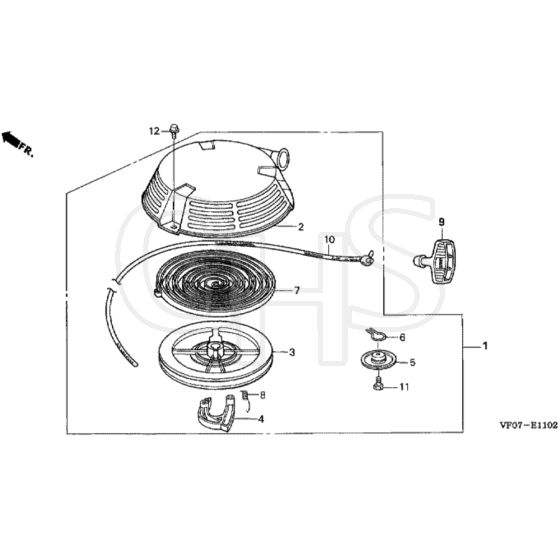

Honda HRD536K3 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP28400-Z1V-J51ZA Available to backorder	Recoil Assy	£132.60 £110.50
2	HP28410-ZE7-003ZD Available to backorder	Recoil Starter Case	£124.20 £103.50
4	HP28422-896-010 In stock	Starter Pawl	£12.49 £10.41
6	HP28441-896-000 Available to backorder	Friction Spring	£5.17 £4.31
7	HP28442-896-700 Available to backorder	Recoil Spring	£27.97 £23.31
8	HP28443-896-000 Available to backorder	Return Spring	£5.17 £4.31
9	HP28461-ZE7-T01 In stock	Recoil Starter Handle	£6.95 £5.79
10	HP28462-ZE7-V11 Available to backorder	Recoil Starter Rope	£16.73 £13.94
11	HP92101-060120H Available to backorder	Bolt	£1.09 £0.91
12	HP95701-0600800 In stock	Flange Bolt 6X8	£1.37 £1.14
