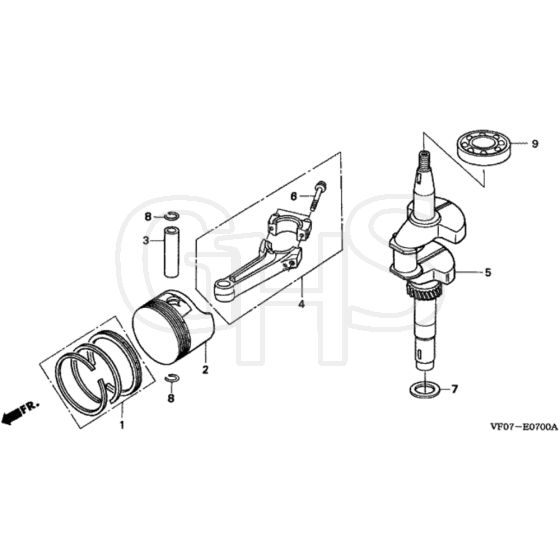

Honda HRD536K3 - HXE - MZBL 8200001-8299999 Crankshaft/Piston Diagram

Description

Honda HRD536K3 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP13011-ZL0-003 Available to backorder	Piston Ring Set - 0.25	£45.73 £38.11
1	HP13012-ZL0-004 Available to backorder	Piston Ring Set - 0.50	£52.60 £43.83
1	HP13010-ZL0-004 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13011-ZL0-004 Available to backorder	Piston Ring Set - 0.25	£45.71 £38.09
1	HP13013-ZL0-003 Available to backorder	Piston Ring Set - 0.75	£52.60 £43.83
1	HP13010-ZL0-003 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13012-ZL0-003 Available to backorder	Piston Ring Set - 0.50	£52.60 £43.83
1	HP13013-ZL0-004 Available to backorder	Piston Ring Set - 0.75	£52.60 £43.83
2	HP13101-ZH8-010 Available to backorder	Piston Std	£62.76 £52.30
2	HP13104-ZE7-020 Available to backorder	Piston - 0.75	£62.04 £51.70
2	HP13102-ZE7-020 Available to backorder	Piston - 0.25	£62.04 £51.70
2	HP13103-ZE7-020 Available to backorder	Piston - 0.50	£62.04 £51.70

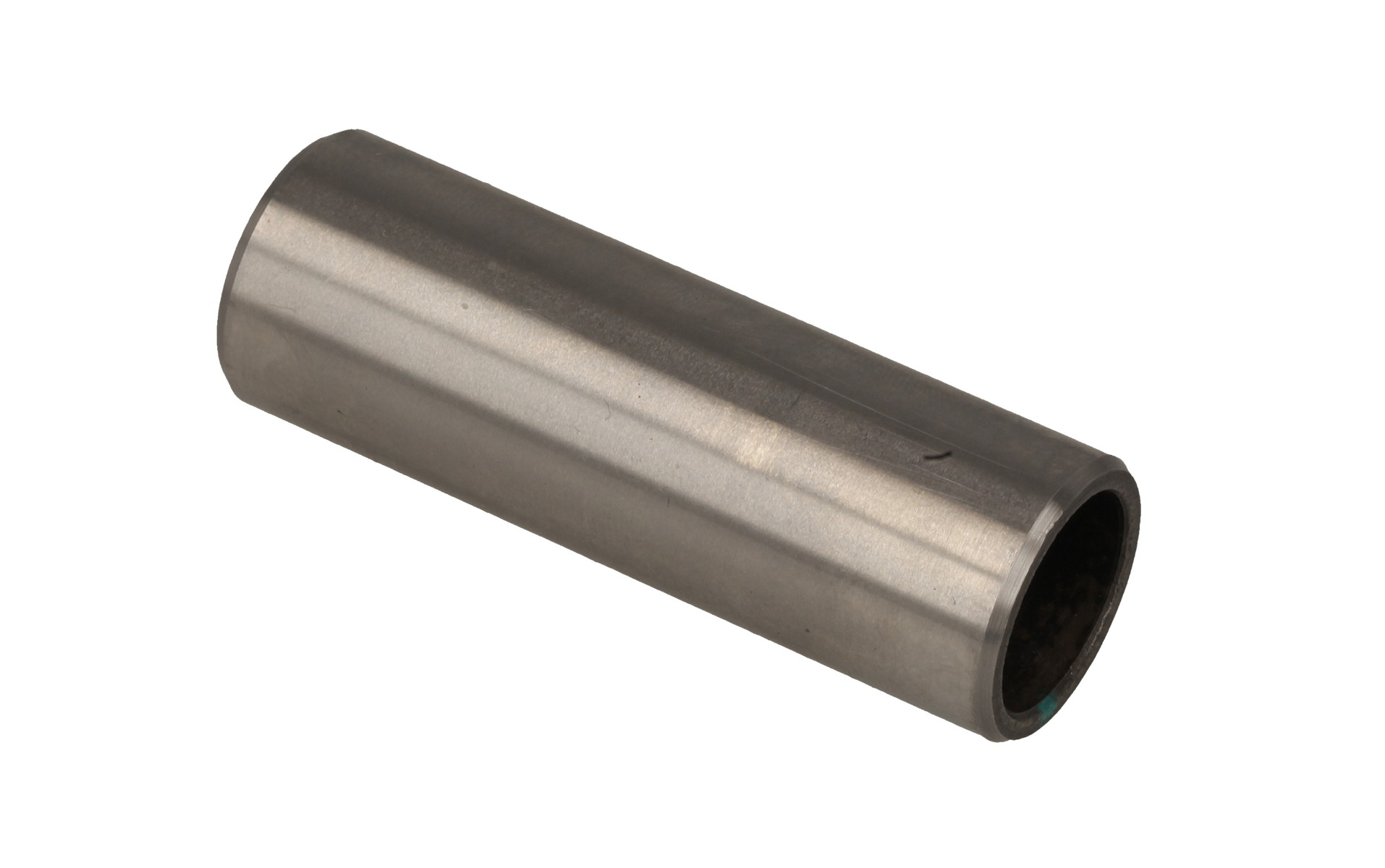

3	HP13111-Z1T-000 Available to backorder	Pin	£13.46 £11.22
4	HP13200-Z1V-000 Available to backorder	Connecting Rod Assy	£107.52 £89.60
5	HP13310-ZE7-M10 Available to backorder	Crankshaft Assy	£196.80 £164.00
6	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.52 £2.93
7	HP90401-ZE7-W00 Available to backorder	Thrust Washer	£6.72 £5.60
8	HP90551-ZE1-000 Available to backorder	Gudgeon Pin Clip 18mm	£1.87 £1.56
