Honda HRD536K2 - HXE - MZBL 8200001-9999999 Crankshaft/Piston Diagram

Name: Honda HRD536K2 - HXE - MZBL 8200001-9999999 Crankshaft/Piston Diagram
SKU: hrd536k2_hxe_mzbl_8200001_9999999_crankshaft_piston-group
Price: 1.56 GBP
Availability: InStock

Part No. hrd536k2_hxe_mzbl_8200001_9999999_crankshaft_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K2 - HXE - MZBL 8200001-9999999 Crankshaft/Piston Diagram

Description

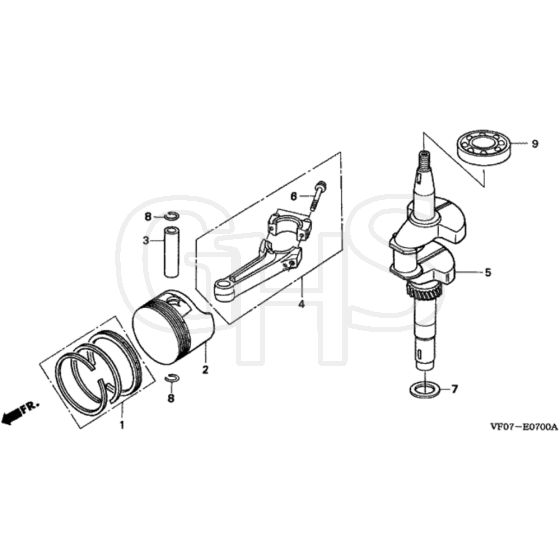

Honda HRD536K2 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP13011-ZL0-004 Available to backorder	Piston Ring Set	£45.71 £38.09
1	HP13013-ZL0-003 Available to backorder	Piston Ring Set	£52.60 £43.83
1	HP13010-ZL0-004 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13011-ZL0-003 Available to backorder	Piston Ring Set - 0.25	£45.73 £38.11
1	HP13012-ZL0-003 Available to backorder	Piston Ring Set - 0.50	£52.60 £43.83
1	HP13013-ZL0-004 Available to backorder	Piston Ring Set - 0.75	£52.60 £43.83
1	HP13010-ZL0-003 Available to backorder	Piston Ring Set - Std	£52.60 £43.83
1	HP13012-ZL0-004 Available to backorder	Piston Ring Set - 0.50	£52.60 £43.83
2	HP13102-ZE7-020 Available to backorder	Piston - 0.25	£62.04 £51.70
2	HP13103-ZE7-020 Available to backorder	Piston - 0.50	£62.04 £51.70
2	HP13104-ZE7-020 Available to backorder	Piston - 0.75	£62.04 £51.70
3	HP13111-ZE1-000 Available to backorder	Gudgeon Pin	£14.05 £11.71
4	HP13200-Z1V-600 Available to backorder	Connecting Rod Assy	£107.52 £89.60
5	HP13310-ZE7-M10 Available to backorder	Crankshaft Assy	£196.80 £164.00
6	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.52 £2.93
7	HP90401-ZE7-W00 Available to backorder	Thrust Washer	£6.72 £5.60
8	HP90551-ZE1-000 Available to backorder	Gudgeon Pin Clip 18mm	£1.87 £1.56
