Honda HRD536K2 - HME - MZBL 8200001-9999999 Throttle Lever Diagram

Name: Honda HRD536K2 - HME - MZBL 8200001-9999999 Throttle Lever Diagram
SKU: hrd536k2_hme_mzbl_8200001_9999999_throttle_lever-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

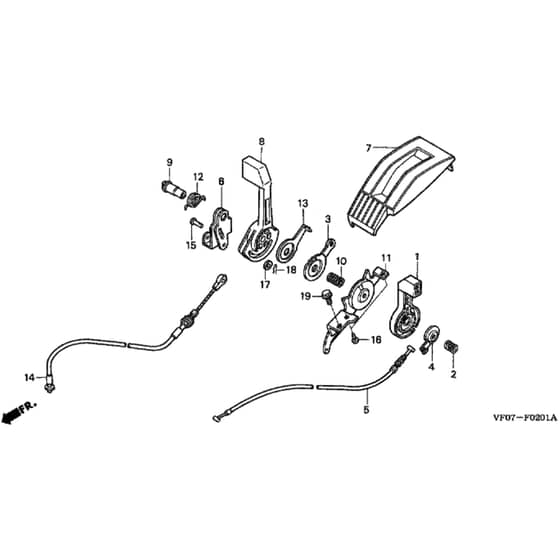

Honda HRD536K2 - HME - MZBL 8200001-9999999 Throttle Lever Diagram

Description

Honda HRD536K2 - HME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£16.16 £13.47
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£3.80 £3.17
3	HP17859-VA3-P00 Available to backorder	Seat Spring	£6.40 £5.33
4	HP17859-VA3-800 Available to backorder	Seat Spring	£6.40 £5.33
5	HP17910-VA3-004 Available to backorder	Throttle Cable	£35.42 £29.52
6	HP24412-VE0-J50 Available to backorder	Change Arm Lever	£19.49 £16.24
7	HP54231-VA3-800 Available to backorder	Control Cover	£46.68 £38.90
8	HP54311-VE0-J50 Available to backorder	Change Lever	£16.36 £13.63
9	HP54313-VA3-P00 Available to backorder	Change Lever Nut	£7.52 £6.27
10	HP54314-VA3-P00 Available to backorder	Change Lever Spring	£3.02 £2.52
11	HP54315-VA3-P40 Available to backorder	Stopper Plate	£39.60 £33.00
12	HP54318-VA3-P00 Available to backorder	Arm Return Spring	£3.74 £3.12
13	HP54319-VA3-P00 Available to backorder	Thrust Plate	£15.76 £13.13
14	HP54630-VF0-953 Available to backorder	Cable	£22.67 £18.89
15	HP90752-VA3-P01 In stock	Pin 6 X 22	£3.12 £2.60
16	HP93901-35210 Available to backorder	Tapping Screw	£1.50 £1.25
17	HP94101-06000 Available to backorder	Plain Washer 6mm	£1.19 £0.99
18	HP94251-06000 In stock	Lock Pin 6mm	£1.14 £0.95
19	HP95701-0601000 Available to backorder	Bolt	£0.90 £0.75
