Honda HRD536K1 - HXE - MZBL 8100001-8199999 Rotary Blade Diagram (up to ser no. 8107600)

Name: Honda HRD536K1 - HXE - MZBL 8100001-8199999 Rotary Blade Diagram (up to ser no. 8107600)
SKU: hrd536k1_hxe_mzbl_8100001_8199999_rotary_blade_1_-group
Price: 0.29 GBP
Availability: InStock

Part No. hrd536k1_hxe_mzbl_8100001_8199999_rotary_blade_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K1 - HXE - MZBL 8100001-8199999 Rotary Blade Diagram (up to ser no. 8107600)

Description

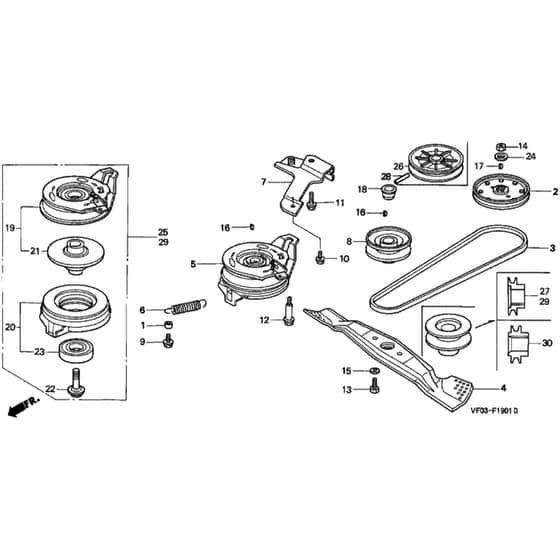

Honda HRD536K1 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP19512-883-000 Available to backorder	Fan Collar	£2.21 £1.84
2	HP22420-VE2-J00 Available to backorder	Pulley	£57.22 £47.68
3	HP22431-VE2-J00 Available to backorder	Belt	£28.97 £24.14
4	HP72511-VF0-E50 Available to backorder	Blade	£40.90 £34.08
7	HP75146-VF1-000 Available to backorder	Cable Stopper	£14.29 £11.91
9	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
10	HP90022-888-010 Available to backorder	Flange Bolt 6 X 20	£2.74 £2.28
11	HP90102-VA4-000 Available to backorder	Engine Setting Bolt	£3.71 £3.09
12	HP90105-VF0-750 In stock	Adjuster Arm Bolt	£11.62 £9.68
13	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
14	HP90304-GA6-003 Available to backorder	Nut	£5.09 £4.24
15	HP90481-430-000 In stock	Washer	£1.28 £1.07
16	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
17	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
20	HP06750-VF1-305 Available to backorder	Blade Clutch Kit	£191.28 £159.40
22	HP90108-VF0-003 Available to backorder	Cap Bolt	£24.46 £20.38
27	HP75162-VF0-000 Available to backorder	Pulley	£43.45 £36.21
