Honda HRD536K1 - HME - MZBL 8100001-8199999 Transmission Diagram

Name: Honda HRD536K1 - HME - MZBL 8100001-8199999 Transmission Diagram
SKU: hrd536k1_hme_mzbl_8100001_8199999_transmission-group
Price: 1.55 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536K1 - HME - MZBL 8100001-8199999 Transmission Diagram

Description

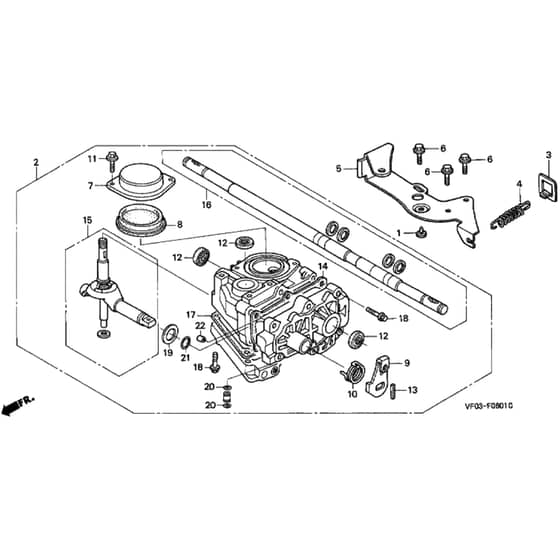

Honda HRD536K1 - HME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17502-GAA-000 Available to backorder	Stopper	£3.00 £2.50
2	HP20001-VE5-A21 Available to backorder	Transmission Assy	£505.20 £421.00
3	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£8.69 £7.24
4	HP24468-VE2-800 Available to backorder	Wheel Tension Spring	£9.59 £7.99
5	HP51125-VE2-J00 Available to backorder	Wire Holder	£59.42 £49.52
6	HP90029-888-000 Available to backorder	Flange Bolt 6 X 16	£4.06 £3.38
7	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£24.31 £20.26
8	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.32 £7.77
9	HP22533-VE5-A00 Available to backorder	Control Arm	£16.30 £13.58
10	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.22 £2.68
11	HP90003-892-000 Available to backorder	Flange Bolt 5 X 12	£1.86 £1.55
12	HP91204-KE8-003 Available to backorder	Oil Seal	£6.84 £5.70
13	HP94305-40252 Available to backorder	Spring Pin 4 X 25	£2.52 £2.10
14	HP21115-VE5-000 Available to backorder	Gasket	£9.08 £7.57
15	HP25010-VE5-A00 Available to backorder	Pump Set	£182.76 £152.30
16	HP25013-VE5-A20 Available to backorder	Shaft Set	£203.88 £169.90
17	HP25513-VE5-000 Available to backorder	Gasket	£9.78 £8.15
18	HP90123-VA4-800 Available to backorder	Flange Bolt	£2.80 £2.33
19	HP90453-235-000 Available to backorder	Thrust Washer	£4.46 £3.72
20	HP91351-VE5-000 Available to backorder	O-Ring	£2.36 £1.97
21	HP91352-VE5-000 Available to backorder	O-Ring	£3.08 £2.57
22	HP94301-08100 Available to backorder	Dowel Pin 8 X 10	£2.38 £1.98
