Honda HRD536CK1 - SXE - MZCA 8100001-8199999 Control Diagram

Name: Honda HRD536CK1 - SXE - MZCA 8100001-8199999 Control Diagram
SKU: hrd536ck1_sxe_mzca_8100001_8199999_control-group
Price: 0.74 GBP
Availability: InStock

Part No. hrd536ck1_sxe_mzca_8100001_8199999_control-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536CK1 - SXE - MZCA 8100001-8199999 Control Diagram

Description

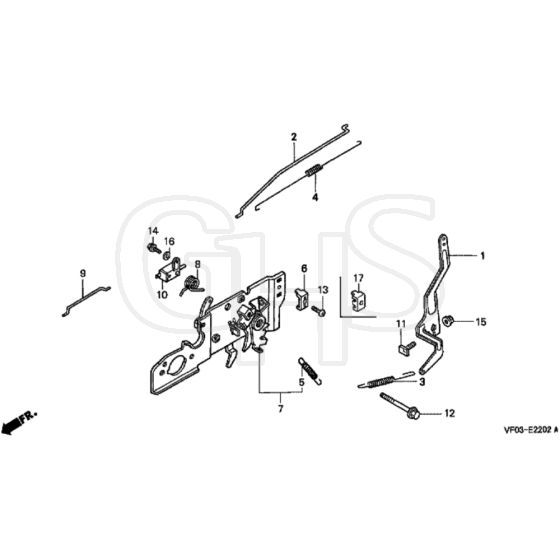

Honda HRD536CK1 - SXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16551-ZM0-010 Available to backorder	Governor Arm	£9.31 £7.76
2	HP16555-ZM0-000 Available to backorder	Governor Rod	£8.54 £7.12
3	HP16561-ZM0-000 Available to backorder	Governor Spring	£3.80 £3.17
4	HP16562-ZM0-000 In stock	Throttle Return Spring	£3.95 £3.29
5	HP16576-ZE7-300 Available to backorder	Lever Spring	£4.46 £3.72
6	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
7	HP16580-ZM0-J23 Available to backorder	Control Base Assy	£38.05 £31.71
8	HP16593-ZM0-000 Available to backorder	Sprig Lever	£5.75 £4.79
9	HP16674-ZM0-000 Available to backorder	Choke Rod	£3.34 £2.78
10	HP35120-ZL8-003 Available to backorder	Engine Stop Switch Assy	£12.23 £10.19
11	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
12	HP90016-ZM0-000 Available to backorder	Flange Bolt	£2.09 £1.74
13	HP93500-050160A Available to backorder	Screw Pan 5 X 16	£1.51 £1.26
14	HP93892-0401200 Available to backorder	Screw	£1.51 £1.26
15	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
16	HP94103-040-00 Available to backorder	Washer 4mm	£0.89 £0.74
17	HP16617-VG3-000 Available to backorder	Cable Holder	£1.84 £1.53
