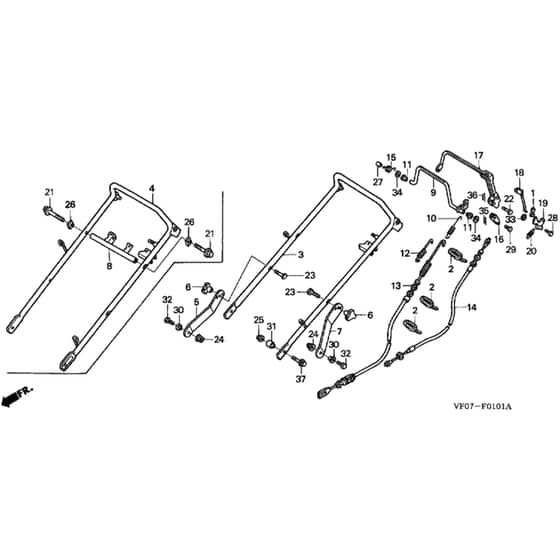

Honda HRD536C3 - HXEE - MAKF 1100001- Handle Pipe Diagram

Name: Honda HRD536C3 - HXEE - MAKF 1100001- Handle Pipe Diagram
SKU: hrd536c3_hxee_makf_1100001_handle_pipe-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536C3 - HXEE - MAKF 1100001- Handle Pipe Diagram

Description

Honda HRD536C3 - HXEE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.52 £7.10
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
3	HP53110-VF0-952ZB Available to backorder	Upper Handle	£174.32 £145.27
5	HP53118-VF0-010ZB Available to backorder	Handle Support	£30.90 £25.75
6	HP53125-VA3-680 In stock	Handle Grip	£12.72 £10.60
7	HP53128-VF0-010ZB Available to backorder	Handle Support L H	£28.30 £23.58
9	HP54410-VA9-H50 Available to backorder	Clutch Lever Assy	£78.72 £65.60
10	HP54411-VA3-P00 In stock	Clutch Spring	£8.64 £7.20
11	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
12	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.52 £5.43
13	HP54510-VF0-E51 Available to backorder	Clutch Cable	£22.68 £18.90
14	HP54530-VF0-A51 Available to backorder	Roto-Stop Cable	£22.32 £18.60
15	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
16	HP75128-VE0-L00 Available to backorder	Cable Arm	£15.50 £12.92
17	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
18	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
20	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
19	HP75166-VA3-J01 Available to backorder	Lock Lever	£23.56 £19.63
22	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
23	HP90109-VF0-000 In stock	Handle Bolt	£10.04 £8.37
24	HP90309-428-731 Out of stock	Flange Nut 8mm	£7.84 £6.53
25	HP90312-SB2-000 In stock	Lock Nut 8mm	£6.62 £5.52
27	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
28	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
29	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
30	HP91551-VF0-000 Available to backorder	Handle Support Collar	£4.68 £3.90
31	HP91552-VF1-000 Available to backorder	Lower Handle Collar	£11.72 £9.77
32	HP92101-080250A Available to backorder	Bolt	£1.81 £1.51
33	HP90407-952-300 Available to backorder	Special Washer 6mm	£4.10 £3.42
34	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.96 £0.80
35	HP94251-06000 In stock	Lock Pin 6mm	£1.14 £0.95
36	HP94251-08000 In stock	Lock Pin 8mm	£1.86 £1.55
37	HP95701-0805500 Available to backorder	Flange Bolt 8 X 55	£2.30 £1.92
