Honda HRD536C3 - HXEE - MAKF 1100001- Cutter Housing Diagram

Name: Honda HRD536C3 - HXEE - MAKF 1100001- Cutter Housing Diagram
SKU: hrd536c3_hxee_makf_1100001_cutter_housing-group
Price: 1.54 GBP
Availability: InStock

Part No. hrd536c3_hxee_makf_1100001_cutter_housing-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD536C3 - HXEE - MAKF 1100001- Cutter Housing Diagram

Description

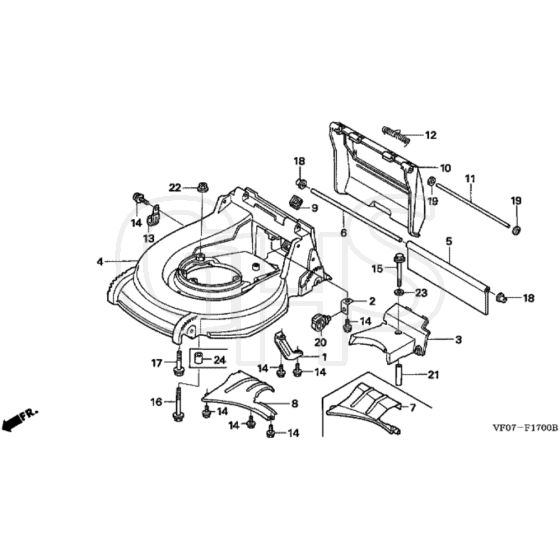

Honda HRD536C3 - HXEE Rotary Mower Parts Diagram

	Part No.	Details
3	HP54241-VF0-000 Available to backorder	Drive Shaft Cover	£46.94 £39.12
4	HP76111-VF0-020ZB Available to backorder	Cutter Housing	£190.68 £158.90
5	HP76118-VF0-010 In stock	Shield	£16.33 £13.61
6	HP76138-VF0-000 Available to backorder	Shield Shaft	£8.71 £7.26
7	HP76142-VF0-E50 Available to backorder	Guide Scroll	£56.11 £46.76
9	HP76231-VA3-000 Available to backorder	Grommet	£7.76 £6.47
10	HP76281-VF0-E51 Available to backorder	Discharge Guard	£61.92 £51.60
11	HP76282-VE2-000 Available to backorder	Discharge Shaft	£6.20 £5.17
12	HP76284-VG8-000 Available to backorder	Guard Return Spring	£8.11 £6.76
13	HP90010-GE0-710 Available to backorder	Tube Clip	£4.62 £3.85
14	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
15	HP90015-ZG0-801 Available to backorder	Flange Bolt 6 X 65	£3.52 £2.93
16	HP90102-VA5-000 Available to backorder	Engine Setting Bolt	£4.57 £3.81
18	HP90301-VA3-J01 In stock	Push Nut	£2.88 £2.40
19	HP90407-VA9-K40 In stock	Special Washer 8mm	£1.85 £1.54
21	HP91553-VF0-000 Available to backorder	Collar 10 X 53	£11.14 £9.28
