Honda HRD536C2 - TXEE - MZCA 1000001-1099999 Throttle Lever Diagram

Name: Honda HRD536C2 - TXEE - MZCA 1000001-1099999 Throttle Lever Diagram
SKU: hrd536c2_txee_mzca_1000001_1099999_throttle_lever_txe_txee_-grou
Price: 0.81 GBP
Availability: InStock

Part No. hrd536c2_txee_mzca_1000001_1099999_throttle_lever_txe_txee_-grou

Skip to the end of the images gallery

Skip to the beginning of the images gallery

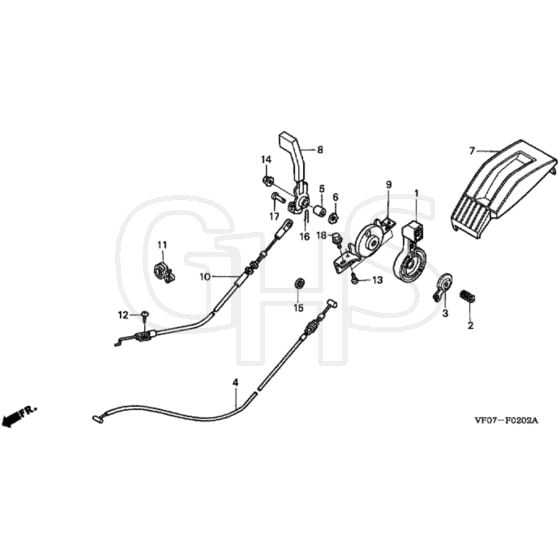

Honda HRD536C2 - TXEE - MZCA 1000001-1099999 Throttle Lever Diagram

Description

Honda HRD536C2 - TXEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£17.32 £14.43
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP17859-VA3-800 Available to backorder	Seat Spring	£6.46 £5.38
4	HP17910-VA3-004 Available to backorder	Throttle Cable	£36.64 £30.53
5	HP19612-896-700 Available to backorder	Recoil Starter Collar	£3.14 £2.62
6	HP47363-671-300 Available to backorder	Wave Washer	£5.46 £4.55
7	HP54231-VA3-800 Available to backorder	Control Cover	£48.25 £40.21
8	HP54311-VA3-J00 Available to backorder	Change Lever	£59.12 £49.27
9	HP54315-VA3-E41 Available to backorder	Stopper Plate	£4.94 £4.12
10	HP54630-VF0-E51 Available to backorder	Speed Change Cable	£31.09 £25.91
11	HP90690-SA0-003 Available to backorder	Strap	£8.63 £7.19
12	HP93903-25110 Available to backorder	Tapping Screw	£1.86 £1.55
13	HP93901-35210 Available to backorder	Tapping Screw	£1.51 £1.26
14	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
16	HP94251-06000 In stock	Lock Pin 6mm	£1.22 £1.02
17	HP95015-51000 Available to backorder	Brake Rod Joint Pin	£1.69 £1.41
18	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
