Honda HRD536C - HXE - MZCA 8000001-8099999 Front Wheel Diagram

Name: Honda HRD536C - HXE - MZCA 8000001-8099999 Front Wheel Diagram
SKU: hrd536c_hxe_mzca_8000001_8099999_front_wheel-group
Price: 0.33 GBP
Availability: InStock

Part No. hrd536c_hxe_mzca_8000001_8099999_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

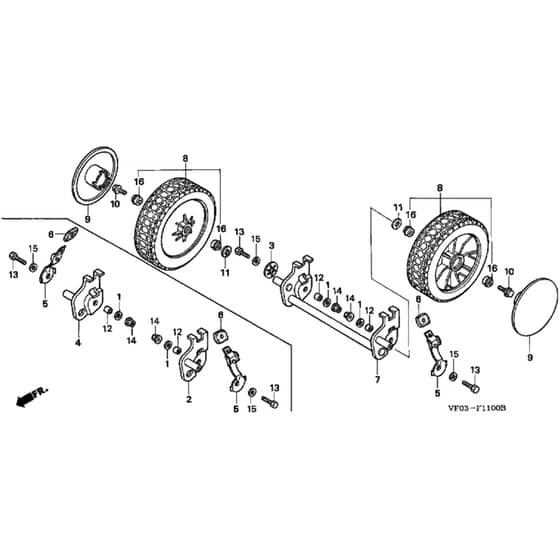

Honda HRD536C - HXE - MZCA 8000001-8099999 Front Wheel Diagram

Description

Honda HRD536C - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP40213-041-730 In stock	Washer 42 X 8.5	£20.86 £17.38
2	HP42921-VF0-000 Available to backorder	Adjuster Arm Front L H	£34.61 £28.84
4	HP42911-VF0-000 Available to backorder	Adjuster Arm Front R H	£29.75 £24.79
5	HP42951-VF0-000 In stock	Front Adjuster Plate	£13.16 £10.97
6	HP42952-VA3-E40 In stock	Adjuster Grip	£2.08 £1.73
8	HP44710-VE0-751ZB Available to backorder	Front Wheel	£47.66 £39.72
9	HP44719-VE0-751ZA In stock	Wheel Cap	£4.50 £3.75
10	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
11	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
12	HP91554-VF0-000 In stock	Collar 12 X 7	£3.56 £2.97
13	HP92201-080350A In stock	Bolt	£0.40 £0.33
14	HP94050-08000 In stock	Flange Nut 8mm	£3.37 £2.81
15	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.97 £0.81
16	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
