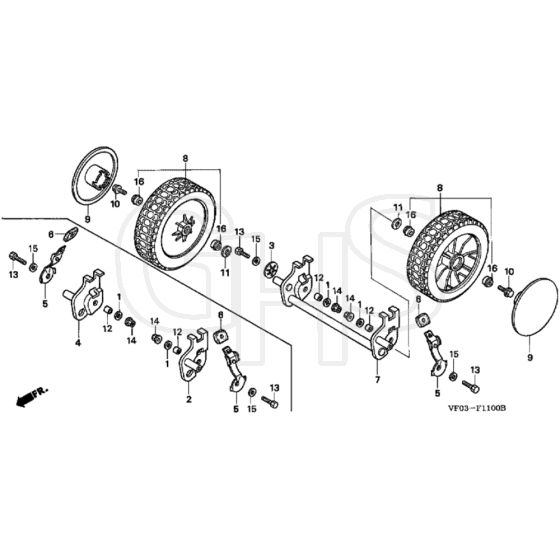

Honda HRD536 - SXE - MZBL 8000001-8099999 Front Wheel Diagram

Description

Honda HRD536 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP40213-041-730 In stock	Washer 42 X 8.5	£15.56 £12.97
2	HP42921-VF0-000 Available to backorder	Adjuster Arm Front L H	£34.61 £28.84
4	HP42911-VF0-000 Available to backorder	Adjuster Arm Front R H	£30.19 £25.16
5	HP42951-VF0-000 In stock	Front Adjuster Plate	£12.04 £10.03
6	HP42952-VA3-E40 In stock	Adjuster Grip	£1.94 £1.62
8	HP44710-VE0-751ZB Available to backorder	Front Wheel (up to ser no. 8019937)	£47.64 £39.70
8	HP44710-VF0-000 Available to backorder	Front Wheel (ser no. 8019938 +)	£47.00 £39.17
9	HP44719-VE0-751ZA In stock	Hub Cap	£4.20 £3.50
10	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
11	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
12	HP91554-VF0-000 In stock	Collar 12 X 7	£3.26 £2.72
13	HP92201-080350A In stock	Bolt	£0.36 £0.30
14	HP94050-08000 In stock	Flange Nut 8mm	£3.08 £2.57
15	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.96 £0.80
16	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30
