Honda HRD536 - HME - MZBL 8000001-8099999 Starter Motor Diagram

Description

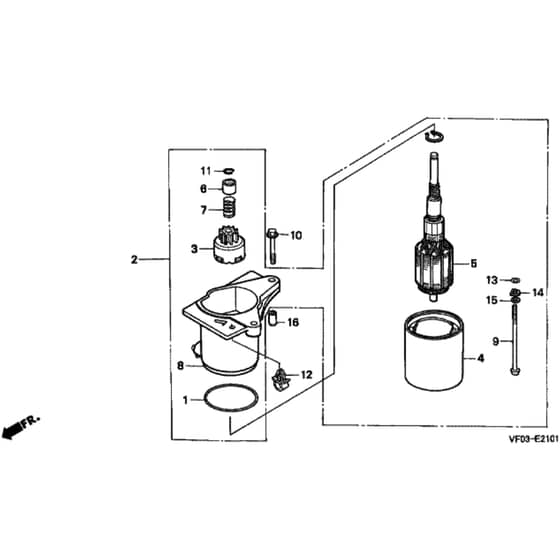

Honda HRD536 - HME Rotary Mower Parts Diagram

	Part No.	Details
1	HP31206-KN7-670 Available to backorder	O Ring	£4.62 £3.85
2	HP31210-ZE7-023 Available to backorder	Starter Motor	£358.32 £298.60
3	HP31214-ZE7-003 Available to backorder	Pinion Gear	£169.92 £141.60
4	HP31216-ZE1-721 Available to backorder	Yoke Assy	£88.92 £74.10
5	HP31217-ZE7-013 Available to backorder	Rotor Assy	£241.44 £201.20
6	HP31221-ZE7-003 Available to backorder	Stopper	£44.46 £37.05
7	HP31223-ZE7-003 Available to backorder	Return Spring	£7.66 £6.38
8	HP31235-ZE7-013 Available to backorder	Bracket	£192.96 £160.80
9	HP90012-ZE6-003 Available to backorder	Bolt	£2.06 £1.72
10	HP90017-883-000 Available to backorder	Flange Bolt	£4.09 £3.41
11	HP90602-ZE7-003 Available to backorder	External Circlip	£2.75 £2.29
12	HP90660-ZA0-600 Available to backorder	Clip	£2.77 £2.31
13	HP91301-ZE1-003 Available to backorder	O Ring	£1.82 £1.52
14	HP91402-ZE6-003 Available to backorder	Special Washer	£0.72 £0.60
15	HP91403-ZE6-003 Available to backorder	Spring Washer	£0.72 £0.60
16	HP94301-08140 Available to backorder	Dowel Pin 8 X 14	£3.06 £2.55
