Honda HRD535K2 - QME - MZBM 8200001-9999999 Cylinder Barrel/Oil Pan Diagram

Description

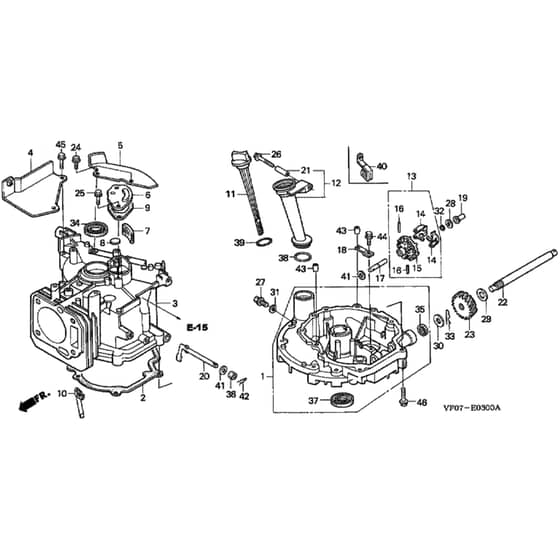

Honda HRD535K2 - QME Rotary Mower Parts Diagram

	Part No.	Details
1	HP11300-ZG9-408 Available to backorder	Crankcase Assy	£207.72 £173.10
2	HP11381-ZG9-T00 Available to backorder	Crankcase Gasket	£7.19 £5.99
3	HP12100-ZG9-415 Available to backorder	Cylinder Assy	£335.28 £279.40
5	HP12126-ZG9-M30 Available to backorder	Guide Plate	£10.16 £8.47
6	HP12360-ZE6-000 Available to backorder	Breather Cap	£17.84 £14.87
7	HP12367-ZE6-010 Available to backorder	Breather Filter	£6.43 £5.36
8	HP12372-879-000 Available to backorder	Breather Valve	£1.51 £1.26
9	HP12373-ZE6-000 In stock	Breather Gasket	Was £2.06 £1.72 Special Price £0.60 £0.50
11	HP15620-ZE6-810 Available to backorder	Oil Level Gauge Assy	£18.34 £15.28
12	HP15630-ZE6-810 Available to backorder	Dipstick Tube	£28.31 £23.59
13	HP16510-ZE6-000 Available to backorder	Governor Assy	£26.36 £21.97
14	HP16511-ZE1-000 Available to backorder	Governor Weight	£4.20 £3.50
15	HP16512-ZE6-000 Available to backorder	Governor Weight Holder	£16.69 £13.91
16	HP16513-ZE1-000 Available to backorder	Governor Weight Pin	£1.98 £1.65
17	HP16515-ZE6-010 Available to backorder	Governor Holder Shaft	£8.06 £6.72
18	HP16525-ZE6-010 Available to backorder	Governor Shaft Holder Plate	£7.97 £6.64
19	HP16531-ZE1-000 Available to backorder	Governor Slider	£4.20 £3.50
20	HP16541-ZE7-000 Available to backorder	Governor Arm Shaft	£11.18 £9.32
21	HP17240-ZE6-000 Available to backorder	Collar	£6.66 £5.55
22	HP23411-ZE6-000 Available to backorder	Drive Shaft	£73.68 £61.40
23	HP23421-ZE6-000 Available to backorder	Driven Gear	£44.99 £37.49
24	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
25	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
26	HP90017-883-000 Available to backorder	Flange Bolt	£4.09 £3.41
27	HP90131-ZE1-000 Available to backorder	Drain Plug	£2.64 £2.20
28	HP90451-ZE1-000 Available to backorder	Thrust Washer 6mm	£1.93 £1.61
29	HP90452-166-600 In stock	Washer	£0.40 £0.33
30	HP90452-187-000 Available to backorder	Washer	£4.68 £3.90
31	HP90601-ZE1-000 Available to backorder	Drain Plug Washer 10.2mm	£1.10 £0.92
32	HP90602-ZE1-000 Available to backorder	Governor Holder Clip	£3.73 £3.11
33	HP90701-ZE6-000 Available to backorder	Lock Pin 2Mm	£2.66 £2.22
34	HP91202-ZE6-013 Available to backorder	Oil Seal 22 X 35 X 6	£11.71 £9.76
35	HP91205-KF0-003 Available to backorder	Oil Seal	£4.64 £3.87
36	HP91231-891-003 Available to backorder	Oil Seal	£2.09 £1.74
37	HP91252-888-003 Available to backorder	Oil Seal 25 X 38 X 7	£13.12 £10.93
38	HP91301-ZE9-003 Available to backorder	O Ring 22.1 X 2.2	£1.90 £1.58
39	HP91301-805-000 Available to backorder	O Ring 26 X 2.7	£3.66 £3.05
40	HP91406-VA3-900 Available to backorder	Clip	£2.90 £2.42
41	HP94101-06800 Available to backorder	Plain Washer 6mm	£1.03 £0.86
42	HP94251-08000 In stock	Lock Pin 8mm	£1.84 £1.53
43	HP94301-08140 Available to backorder	Dowel Pin 8 X 14	£3.06 £2.55
44	HP95701-0601208 Available to backorder	Flange Bolt 6 X 12	£1.32 £1.10
46	HP95701-0602800 Available to backorder	Flange Bolt 6 X 28	£1.55 £1.29
