Honda HRD535K2 - QME - MZBM 8200001-9999999 Crankshaft/Piston Diagram

Name: Honda HRD535K2 - QME - MZBM 8200001-9999999 Crankshaft/Piston Diagram
SKU: hrd535k2_qme_mzbm_8200001_9999999_crankshaft_piston-group
Price: 1.56 GBP
Availability: InStock

Part No. hrd535k2_qme_mzbm_8200001_9999999_crankshaft_piston-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRD535K2 - QME - MZBM 8200001-9999999 Crankshaft/Piston Diagram

Description

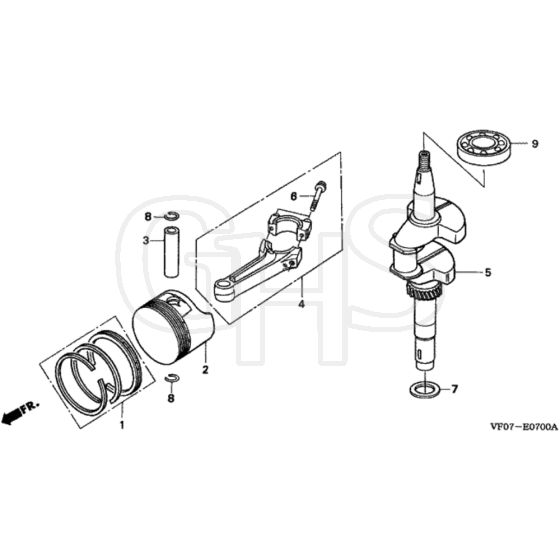

Honda HRD535K2 - QME Rotary Mower Parts Diagram

	Part No.	Details
1	HP13012-ZG9-003 Available to backorder	Piston Ring Set - 0.50	£40.66 £33.88
1	HP13010-ZG9-003 Available to backorder	Piston Ring Set - Std	£40.60 £33.83
1	HP13013-ZG9-003 Available to backorder	Piston Ring Set - 0.75	£34.24 £28.53
1	HP13011-ZG9-003 Available to backorder	Piston Ring Set - 0.25	£40.66 £33.88
2	HP13102-ZG9-010 Available to backorder	Piston - 0.25	£52.68 £43.90
2	HP13101-ZG9-010 Available to backorder	Piston Std	£52.67 £43.89
2	HP13103-ZG9-010 Available to backorder	Piston - 0.50	£53.74 £44.78
2	HP13104-ZG9-010 Available to backorder	Piston - 0.75	£50.90 £42.42
3	HP13111-ZE0-000 Available to backorder	Gudgeon Pin	£10.57 £8.81
4	HP13200-ZE6-010 Available to backorder	Connecting Rod Assy	£105.96 £88.30
6	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.52 £2.93
7	HP90459-357-000 Available to backorder	Thrust Washer	£6.54 £5.45
8	HP90551-ZE0-000 Available to backorder	Gudgeon Pin Clip 13mm	£1.87 £1.56
9	HP91001-878-003 Available to backorder	Bearing	£39.00 £32.50
