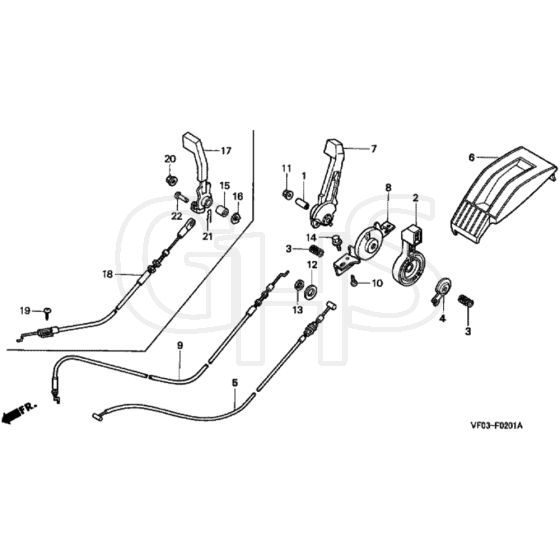

Honda HRD535K1 - TME - MZBM 8100001-8199999 Throttle Lever Diagram

Description

Honda HRD535K1 - TME Rotary Mower Parts Diagram

	Part No.	Details
2	HP17851-VA3-D01 In stock	Throttle Lever	£17.32 £14.43
3	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
4	HP17859-VA3-800 Available to backorder	Seat Spring	£6.46 £5.38
5	HP17910-VA3-004 Available to backorder	Throttle Cable	£36.64 £30.53
6	HP54231-VA3-800 Available to backorder	Control Cover	£48.25 £40.21
8	HP54315-VA3-E41 Available to backorder	Stopper Plate	£4.94 £4.12
10	HP93901-35210 Available to backorder	Tapping Screw	£1.51 £1.26
14	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
15	HP19612-896-700 Available to backorder	Recoil Starter Collar	£3.14 £2.62
16	HP47363-671-300 Available to backorder	Wave Washer	£5.46 £4.55
17	HP54311-VA3-J00 Available to backorder	Change Lever	£59.12 £49.27
18	HP54630-VF0-E51 Available to backorder	Speed Change Cable	£31.09 £25.91
19	HP93903-25110 Available to backorder	Tapping Screw	£1.86 £1.55
21	HP94251-06000 In stock	Lock Pin 6mm	£1.22 £1.02
22	HP95015-51000 Available to backorder	Brake Rod Joint Pin	£1.69 £1.41
