Honda HRD535K1 - TME - MZBM 8100001-8199999 Rotary Blade Diagram

Name: Honda HRD535K1 - TME - MZBM 8100001-8199999 Rotary Blade Diagram
SKU: hrd535k1_tme_mzbm_8100001_8199999_rotary_blade_sme_tme_-group
Price: 0.49 GBP
Availability: InStock

Part No. hrd535k1_tme_mzbm_8100001_8199999_rotary_blade_sme_tme_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

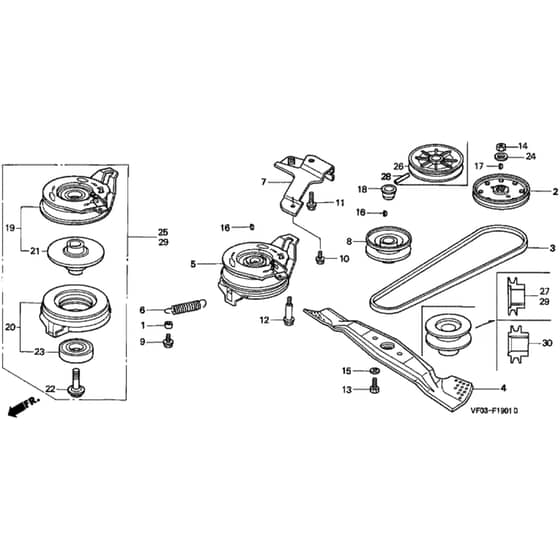

Honda HRD535K1 - TME - MZBM 8100001-8199999 Rotary Blade Diagram

Description

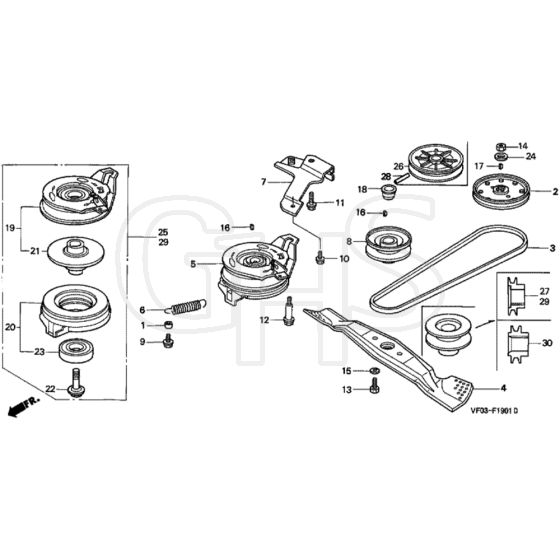

Honda HRD535K1 - TME Rotary Mower Parts Diagram

	Part No.	Details
1	HP19512-883-000 Available to backorder	Fan Collar	£2.21 £1.84
3	HP22431-VF0-E51 Available to backorder	V-Belt	£32.14 £26.78
4	HP72511-VF0-E50 Available to backorder	Blade	£40.90 £34.08
7	HP75146-VF0-000 Available to backorder	Cable Stopper	£10.86 £9.05
10	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
11	HP90102-VA4-000 Available to backorder	Engine Setting Bolt	£3.71 £3.09
12	HP90105-VF0-750 In stock	Adjuster Arm Bolt	£11.62 £9.68
13	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
15	HP90481-430-000 In stock	Washer	£1.28 £1.07
16	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
20	HP06750-VF1-305 Available to backorder	Blade Clutch Kit	£191.28 £159.40
22	HP90108-VF0-003 Available to backorder	Cap Bolt	£24.46 £20.38
26	HP22422-VF0-E50 Available to backorder	Pulley	£27.60 £23.00
27	HP75162-VF0-000 Available to backorder	Pulley	£43.45 £36.21
28	HP90751-VF0-E50 Available to backorder	Spring Pin 5 X 35	£2.20 £1.83
