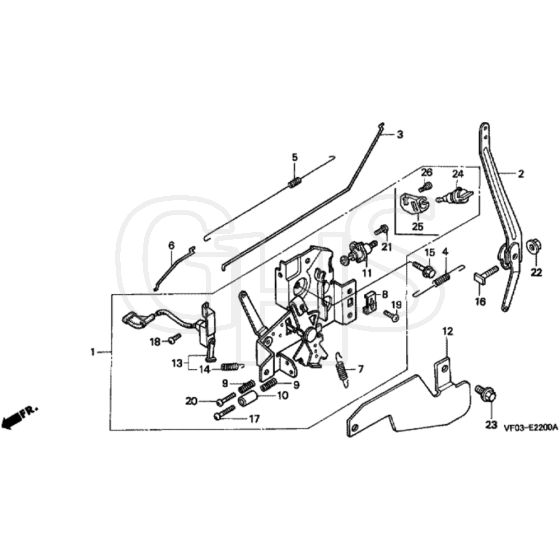

Honda HRD535K1 - TME Rotary Mower Parts Diagram

	Part No.	Details
1	HP16500-ZG9-P71 Available to backorder	Control Assy	£94.08 £78.40
4	HP16561-ZE6-010 In stock	Governor Spring	£4.36 £3.63
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.76 £4.80
6	HP16573-ZE6-010 In stock	Choke Rod	£3.62 £3.02
8	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.80 £4.00
10	HP16599-ZG1-M10 Available to backorder	Stopper Collar	£2.62 £2.18
12	HP17100-ZE6-000 Available to backorder	Control Protector	£11.83 £9.86
15	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
16	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
17	HP90016-ZG9-N30 Available to backorder	Recessed Screw 5 X 25	£4.57 £3.81
19	HP93500-050160A Available to backorder	Screw Pan 5 X 16	£1.51 £1.26
20	HP93500-050200A Available to backorder	Screw Pan 5 X 20	£1.51 £1.26
22	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
23	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
24	1271 In stock	Fuel Tap Assy	£3.68 £3.07
25	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.35 £2.79
26	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.57 £1.31
