Honda HRD535K1 - SME - MZBM 8100001-8199999 Transmission Diagram

Description

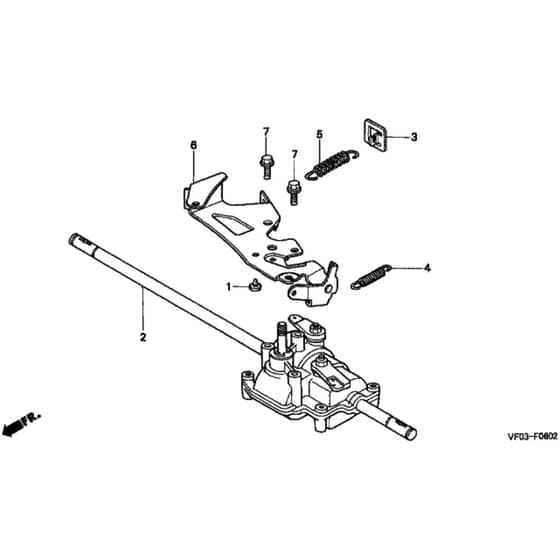

Honda HRD535K1 - SME Rotary Mower Parts Diagram

	Part No.	Details
1	HP17502-GAA-000 Available to backorder	Stopper	£3.11 £2.59
2	HP20001-VF0-023 Available to backorder	Transmission Assy	£221.88 £184.90
3	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
4	HP22624-VE2-M01 Available to backorder	Clutch Return Spring	£2.81 £2.34
5	HP24468-VE2-800 Available to backorder	Wheel Tension Spring	£9.46 £7.88
6	HP51120-VE2-M00 Available to backorder	Wire Holder	£56.48 £47.07
7	HP90031-883-000 Available to backorder	Flange Bolt 8 X 16	£6.37 £5.31
