Honda HRD535K1 - QXE - MZBM 8100001-8199999 Control Diagram

Description

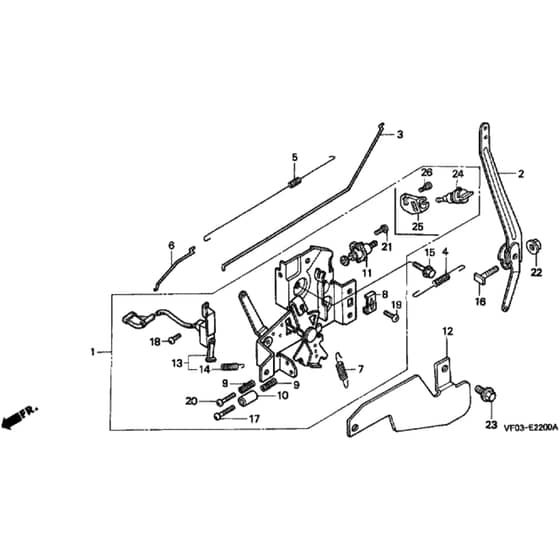

Honda HRD535K1 - QXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP04102-ZG9-P50 Available to backorder	Control Assy Kit	£101.16 £84.30
4	HP16561-ZE6-010 Available to backorder	Governor Spring	£4.06 £3.38
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.28 £4.40
6	HP16573-ZE6-010 In stock	Choke Rod	£3.38 £2.82
8	HP16576-891-000 Available to backorder	Cable Holder	£3.85 £3.21
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.75 £3.96
10	HP16599-ZG1-M10 Available to backorder	Stopper Collar	£2.59 £2.16
12	HP17100-ZE6-000 Available to backorder	Control Protector	£11.72 £9.77
14	HP36120-ZE6-010 In stock	Switch Control Spring	£2.54 £2.12
15	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
16	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.31 £2.76
17	HP90016-ZG9-N30 Available to backorder	Recessed Screw 5 X 25	£4.52 £3.77
18	HP93500-040080A Available to backorder	Screw	£1.50 £1.25
19	HP93500-050160A Available to backorder	Screw Pan 5 X 16	£1.50 £1.25
20	HP93500-050200A Available to backorder	Screw Pan 5 X 20	£1.50 £1.25
22	HP94050-06000 In stock	Flange Nut 6mm	£3.22 £2.68
23	HP95701-0601000 Available to backorder	Bolt	£0.90 £0.75
24	1271 In stock	Fuel Tap Assy	£5.06 £4.22
25	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.31 £2.76
26	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.56 £1.30
