Honda HRD535K1 - QME - MZBM 8100001-8199999 Front Wheel Diagram

Name: Honda HRD535K1 - QME - MZBM 8100001-8199999 Front Wheel Diagram
SKU: hrd535k1_qme_mzbm_8100001_8199999_front_wheel-group
Price: 0.33 GBP
Availability: InStock

Part No. hrd535k1_qme_mzbm_8100001_8199999_front_wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

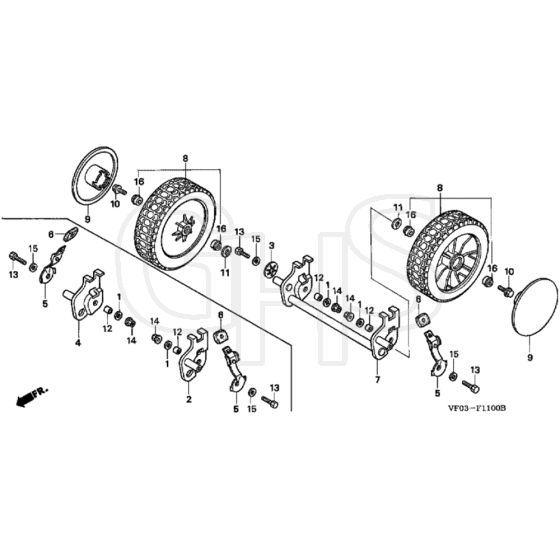

Honda HRD535K1 - QME - MZBM 8100001-8199999 Front Wheel Diagram

Description

Honda HRD535K1 - QME Rotary Mower Parts Diagram

	Part No.	Details
1	HP40213-041-730 In stock	Washer 42 X 8.5	£20.86 £17.38
3	HP42915-959-000 Available to backorder	Adjuster Arm Spring	£8.51 £7.09
5	HP42951-VF0-000 In stock	Front Adjuster Plate	£13.16 £10.97
6	HP42952-VA3-E40 In stock	Adjuster Grip	£2.08 £1.73
7	HP44310-VF0-750 Available to backorder	Front Axle Arm	£75.00 £62.50
8	HP44710-VF0-000 In stock	Front Wheel	£50.36 £41.97
9	HP44719-VE0-751ZA In stock	Hub Cap	£4.50 £3.75
10	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
11	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
12	HP91554-VF0-000 In stock	Collar 12 X 7	£3.56 £2.97
13	HP92201-080350A In stock	Bolt	£0.40 £0.33
14	HP94050-08000 In stock	Flange Nut 8mm	£3.37 £2.81
15	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.97 £0.81
16	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
