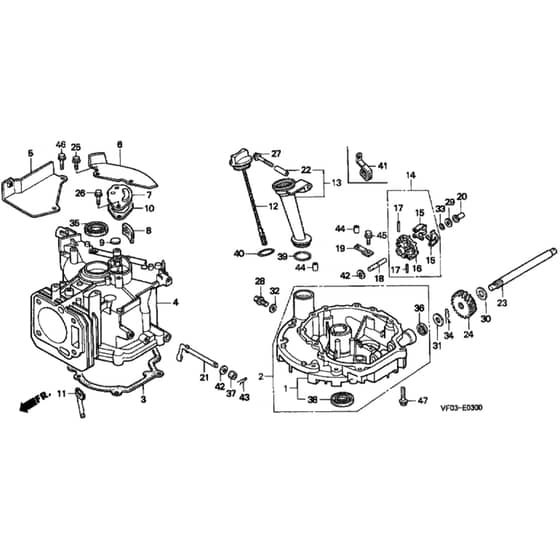

Honda HRD535 - SXE - MZBM 8000001-8099999 Cylinder Barrel/Oil Pan Diagram

Description

Honda HRD535 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP11300-ZG9-407 Available to backorder	Crankcase Assy	£194.40 £162.00
3	HP11381-ZG9-T00 Available to backorder	Crankcase Gasket	£7.12 £5.93
4	HP12100-ZG9-415 Available to backorder	Cylinder Assy	£349.22 £291.02
5	HP12125-ZG9-000 Available to backorder	Guide Plate	£11.18 £9.32
6	HP12126-ZG9-M30 Available to backorder	Guide Plate	£10.16 £8.47
7	HP12360-ZE6-000 Available to backorder	Breather Cap	£17.68 £14.73
8	HP12367-ZE6-010 Available to backorder	Breather Filter	£6.37 £5.31
9	HP12372-879-000 Available to backorder	Breather Valve	£1.50 £1.25
10	HP12373-ZE6-000 In stock	Breather Gasket	Was £2.06 £1.72 Special Price £0.60 £0.50
12	HP15620-ZE6-810 Available to backorder	Oil Level Gauge Assy	£18.17 £15.14
13	HP15630-ZE6-810 Available to backorder	Dipstick Tube	£28.06 £23.38
14	HP16510-ZE6-000 Available to backorder	Governor Assy	£26.12 £21.77
15	HP16511-ZE1-000 Available to backorder	Governor Weight	£4.15 £3.46
16	HP16512-ZE6-000 Available to backorder	Governor Weight Holder	£16.54 £13.78
17	HP16513-ZE1-000 Available to backorder	Governor Weight Pin	£1.96 £1.63
18	HP16515-ZE6-010 Available to backorder	Governor Holder Shaft	£7.99 £6.66
19	HP16525-ZE6-010 Available to backorder	Governor Shaft Holder Plate	£7.90 £6.58
20	HP16531-ZE1-000 Available to backorder	Governor Slider	£4.15 £3.46
21	HP16541-ZE7-000 Available to backorder	Governor Arm Shaft	£11.09 £9.24
22	HP17240-ZE6-000 Available to backorder	Collar	£6.60 £5.50
25	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
26	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
27	HP90017-883-000 Available to backorder	Flange Bolt	£4.06 £3.38
28	HP90131-ZE1-000 Available to backorder	Drain Plug	£2.62 £2.18
29	HP90451-ZE1-000 Available to backorder	Thrust Washer 6mm	£1.92 £1.60
32	HP90601-ZE1-000 Available to backorder	Drain Plug Washer 10.2mm	£1.09 £0.91
33	HP90602-ZE1-000 Available to backorder	Governor Holder Clip	£3.70 £3.08
35	HP91202-ZE6-013 Available to backorder	Oil Seal 22 X 35 X 6	£9.36 £7.80
37	HP91231-891-003 Available to backorder	Oil Seal	£2.02 £1.68
38	HP91252-888-003 Available to backorder	Oil Seal 25 X 38 X 7	£13.00 £10.83
39	HP91301-ZE9-003 Available to backorder	O Ring 22.1 X 2.2	£1.88 £1.57
40	HP91301-805-000 Available to backorder	O Ring 26 X 2.7	£3.62 £3.02
41	HP91406-VA3-900 Available to backorder	Clip	£2.87 £2.39
42	HP94101-06800 Available to backorder	Plain Washer 6mm	£0.96 £0.80
43	HP94251-08000 In stock	Lock Pin 8mm	£1.86 £1.55
44	HP94301-08140 Available to backorder	Dowel Pin 8 X 14	£3.04 £2.53
45	HP95701-0601208 Available to backorder	Flange Bolt 6 X 12	£1.31 £1.09
46	HP95701-06020-00 Available to backorder	Bolt	£1.31 £1.09
47	HP95701-0602800 Available to backorder	Flange Bolt 6 X 28	£1.54 £1.28
