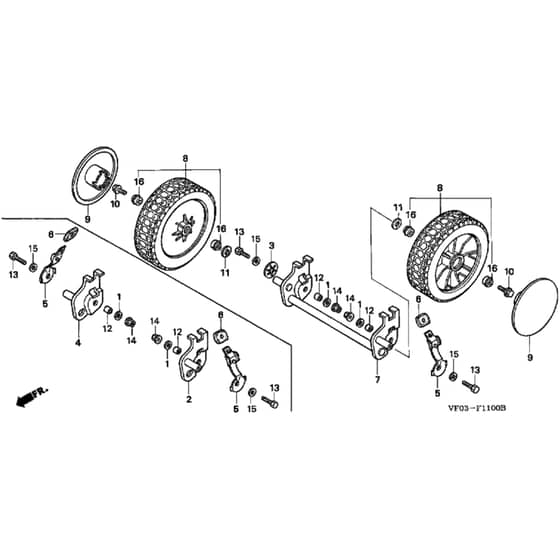

Honda HRD535 - QME - MZBM 8000001-8099999 Front Wheel Diagram

Description

Honda HRD535 - QME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP40213-041-730 In stock	Washer 42 X 8.5	£15.56 £12.97
3	HP42915-959-000 Available to backorder	Adjuster Arm Spring	£8.06 £6.72
5	HP42951-VF0-000 In stock	Front Adjuster Plate	£12.04 £10.03
6	HP42952-VA3-E40 In stock	Adjuster Grip	£1.94 £1.62
7	HP44310-VF0-750 Available to backorder	Front Axle Arm	£75.00 £62.50
8	HP44710-VE0-751ZB Available to backorder	Front Wheel (up to ser no. 8040105)	£47.64 £39.70
8	HP44710-VF0-000 Available to backorder	Front Wheel (ser no. 8040106 +)	£47.00 £39.17
9	HP44719-VE0-751ZA In stock	Hub Cap	£4.20 £3.50
10	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
11	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
12	HP91554-VF0-000 In stock	Collar 12 X 7	£3.26 £2.72
13	HP92201-080350A In stock	Bolt	£0.36 £0.30
14	HP94050-08000 In stock	Flange Nut 8mm	£3.08 £2.57
15	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.96 £0.80
16	HP91051-VE0-750 In stock	Bearing	£11.16 £9.30
