Honda HRD535 - HXE - MZBM 8000001-8099999 Transmission Diagram

Name: Honda HRD535 - HXE - MZBM 8000001-8099999 Transmission Diagram
SKU: hrd535_hxe_mzbm_8000001_8099999_transmission_hxe_-group
Price: 1.57 GBP
Availability: InStock

Part No. hrd535_hxe_mzbm_8000001_8099999_transmission_hxe_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

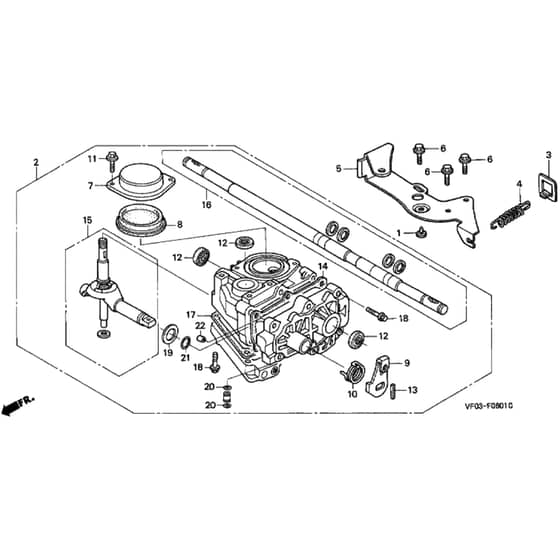

Honda HRD535 - HXE - MZBM 8000001-8099999 Transmission Diagram

Description

Honda HRD535 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17502-GAA-000 Available to backorder	Stopper	£3.11 £2.59
2	HP20001-VE5-A21 Available to backorder	Transmission Assy	£541.20 £451.00
3	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
4	HP24468-VE2-800 Available to backorder	Wheel Tension Spring	£9.46 £7.88
5	HP51125-VE2-J00 Available to backorder	Wire Holder	£61.46 £51.22
6	HP90029-888-000 Available to backorder	Flange Bolt 6 X 16	£4.09 £3.41
7	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£23.95 £19.96
8	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.19 £7.66
9	HP22533-VE5-A00 Available to backorder	Control Arm	£16.06 £13.38
10	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.34 £2.78
11	HP90003-892-000 Available to backorder	Flange Bolt 5 X 12	£1.88 £1.57
12	HP91204-KE8-003 In stock	Oil Seal	£7.34 £6.12
13	HP94305-40252 Available to backorder	Spring Pin 4 X 25	£2.48 £2.07
