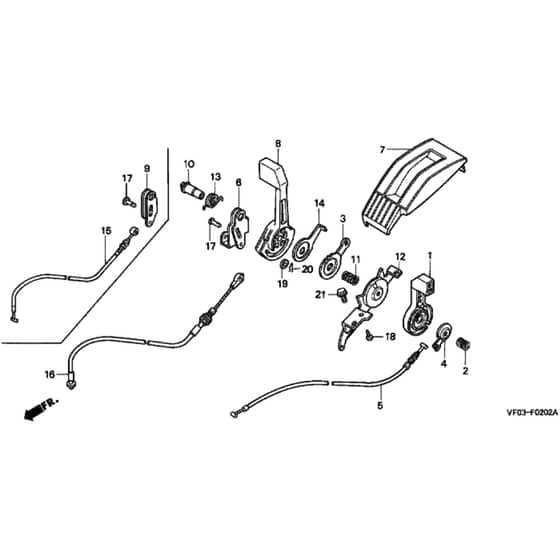

Honda HRD535 - HXE - MZBM 8000001-8099999 Throttle Lever Diagram

Description

Honda HRD535 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£16.16 £13.47
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£3.80 £3.17
3	HP17859-VA3-P00 Available to backorder	Seat Spring	£6.40 £5.33
4	HP17859-VA3-800 Available to backorder	Seat Spring	£6.40 £5.33
5	HP17910-VA3-013 In stock	Throttle Cable	£37.80 £31.50
6	HP24412-VE0-J50 Available to backorder	Change Arm Lever	£19.49 £16.24
7	HP54231-VA3-800 Available to backorder	Control Cover	£46.68 £38.90
8	HP54311-VE0-J50 Available to backorder	Change Lever	£16.36 £13.63
10	HP54313-VA3-P00 Available to backorder	Change Lever Nut	£7.52 £6.27
11	HP54314-VA3-P00 Available to backorder	Change Lever Spring	£3.02 £2.52
12	HP54315-VA3-P40 Available to backorder	Stopper Plate	£39.60 £33.00
13	HP54318-VA3-P00 Available to backorder	Arm Return Spring	£3.74 £3.12
14	HP54319-VA3-P00 Available to backorder	Thrust Plate	£15.76 £13.13
16	HP54630-VF0-951 Available to backorder	Speed Change Cable	£30.48 £25.40
17	HP90752-VA3-P01 In stock	Pin 6 X 22	£3.12 £2.60
18	HP93901-35210 Available to backorder	Tapping Screw	£1.50 £1.25
19	HP94101-06000 Available to backorder	Plain Washer 6mm	£1.19 £0.99
20	HP94251-06000 In stock	Lock Pin 6mm	£1.14 £0.95
21	HP95701-0601000 Available to backorder	Bolt	£0.90 £0.75
