Honda HRD535 - HXE - MZBM 8000001-8099999 Rear Wheel Diagram

Description

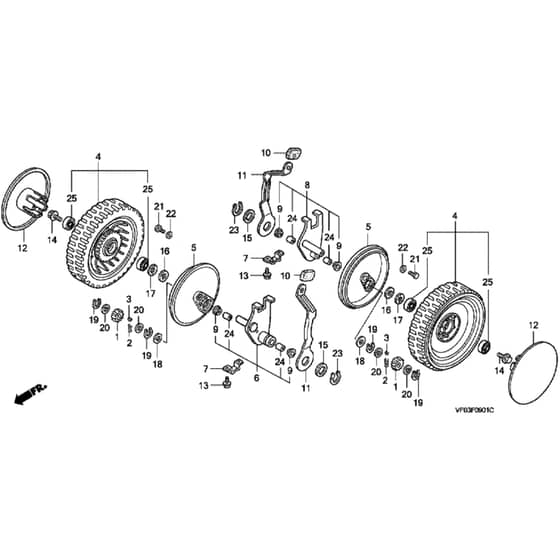

Honda HRD535 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£10.86 £9.05
2	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
3	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
4	HP42710-VF1-000 Available to backorder	Rear Wheel	£54.88 £45.73
5	HP42866-VE2-800 Available to backorder	Wheel Cap	£15.94 £13.28
6	HP42930-VF0-030 Available to backorder	Adjuster Arm Assy Rear R H	£36.02 £30.02
7	HP42938-VF0-000 Available to backorder	Axle Holder	£2.27 £1.89
8	HP42940-VF0-030 In stock	Adjuster Arm Front L H	£37.68 £31.40
9	HP42944-VE2-801 In stock	Dust Seal 12.7mm	£10.07 £8.39
10	HP42952-VA4-000 In stock	Adjuster Grip	£1.76 £1.47
11	HP42961-VF0-000 Available to backorder	Rear Adjuster Plate	£11.57 £9.64
12	HP44719-VF0-010 Available to backorder	Wheel Cap (up to ser no. 8040105)	£4.16 £3.47
12	HP42719-VE0-851ZA Available to backorder	Wheel Cap (ser no. 8040106 +)	£3.60 £3.00
13	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
14	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
15	HP90403-952-770 Available to backorder	Plain Washer 22mm	£3.56 £2.97
16	HP90451-HB3-000 Available to backorder	Thrust Washer	£5.96 £4.97
17	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
18	HP90502-VE2-800 In stock	Thrust Washer 13mm	£4.48 £3.73
19	HP90651-VE2-800 In stock	External Circlip 12.7mm	£1.69 £1.41
20	HP91559-VE2-800 In stock	Pinion Gear Collar	£1.81 £1.51
21	HP92101-050120A Available to backorder	Bolt	£1.04 £0.87
22	HP94101-05800 Available to backorder	Plain Washer 5mm	£0.97 £0.81
23	HP94511-22000 Available to backorder	External Circlip 22mm	£2.03 £1.69
25	HP91051-VE0-750 In stock	Bearing (up to ser no. 8040105)	£12.20 £10.17
25	HP91055-VF0-000 In stock	Bearing (ser no. 8040106 +)	£10.21 £8.51
