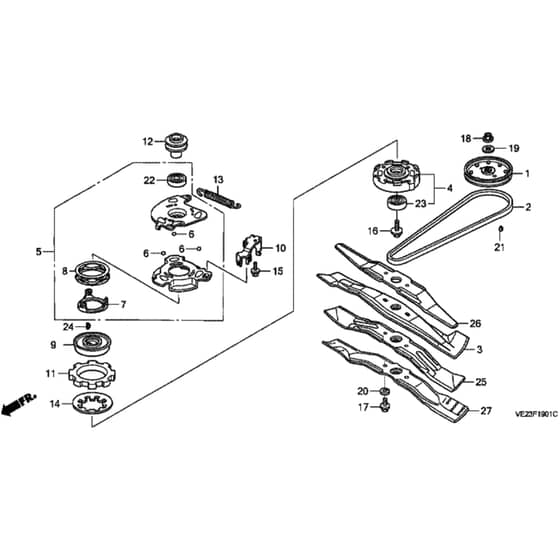

Honda HRB536C2 - TXE - MZCB 6200001-9999999 Rotary Blade Diagram

Description

Honda HRB536C2 - TXE Rotary Mower Parts Diagram

	Part No.	Details
2	HP22431-VE1-T00 Available to backorder	Belt	£31.49 £26.24
4	HP72600-VE1-G00 Available to backorder	Blade Holder Assy	£71.04 £59.20
5	HP75110-VE1-R00 Available to backorder	Ball Control Plate	£88.92 £74.10
6	HP75117-VE1-G00 Available to backorder	Bearing	£3.42 £2.85
7	HP75127-VE1-G00 Available to backorder	Spring Hook Plate	£13.38 £11.15
8	HP75132-VE1-G00 Available to backorder	Spring	£10.45 £8.71
9	HP75141-VE1-G00 Available to backorder	Drive Disk	£29.60 £24.67
10	HP75143-VE1-G00 Available to backorder	Return Spring Hook	£8.29 £6.91
11	HP75150-VE1-G02 In stock	Driven Disk Assy	£74.24 £61.87
12	HP75162-VE1-G00 Available to backorder	Pulley	£36.35 £30.29
13	HP75182-VE1-G02 Available to backorder	Clutch Return Spring	£9.31 £7.76
14	HP75183-VE1-G01 In stock	Clutch Spring	£9.74 £8.12
15	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
16	HP90101-VE1-G00 Available to backorder	Flange Bolt 10 X 24	£2.80 £2.33
17	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
18	HP90304-GA6-003 Available to backorder	Nut	£5.09 £4.24
19	HP90405-KV3-000 Available to backorder	Thrust Washer	£5.28 £4.40
20	HP90502-VG3-000 In stock	Spring Washer 10mm	£1.76 £1.47
21	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
22	HP91051-VE1-G00 Available to backorder	Bearing	£25.42 £21.18
23	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
24	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
27	HP72511-VE1-E51 In stock	Blade	£52.08 £43.40
