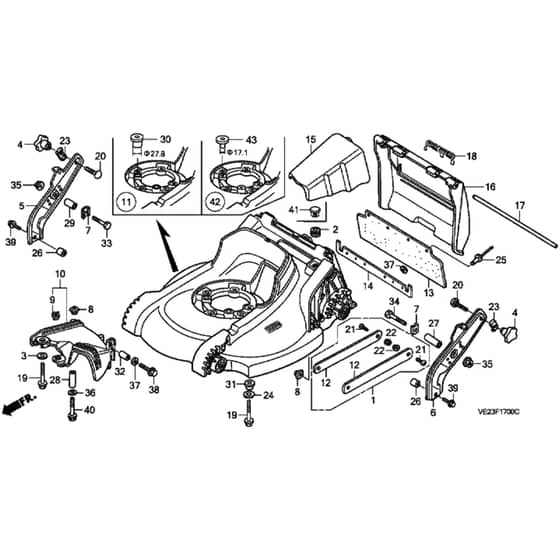

Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Cutter Housing Diagram

Name: Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Cutter Housing Diagram
SKU: hrb536c1_txfa_mzcb_6100001_6199999_cutter_housing-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB536C1 - TXFA - MZCB 6100001-6199999 Cutter Housing Diagram

Description

Honda HRB536C1 - TXFA Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP06761-VE2-000 Available to backorder	Housing Guard Kit	£35.96 £29.97
2	HP50329-HA7-670 Available to backorder	Rubber	£3.80 £3.17
3	HP53101-GN5-900 Available to backorder	Washer	£6.30 £5.25
4	HP53125-VA4-K10 Available to backorder	Handle Grip	£14.29 £11.91
5	HP53130-VE1-T00ZB Available to backorder	Handle Stay	£42.84 £35.70
6	HP53135-VE1-T00ZB Available to backorder	Handle Stay	£42.84 £35.70
7	HP53137-VE2-000 Available to backorder	Handle Stay Holder	£8.24 £6.87
8	HP61304-165-013 Available to backorder	Head Light Set Nut	£5.66 £4.72
9	HP61304-958-003 In stock	Nut	£6.16 £5.13
10	HP76105-VE1-650ZA Available to backorder	Guide Scroll Assy	£103.56 £86.30
13	HP76118-VE2-000 Available to backorder	Shield	£40.68 £33.90
14	HP76119-VE1-660 Available to backorder	Shield Plate	£33.38 £27.82
16	HP76281-VE1-651ZC Available to backorder	Discharge Guard	£64.56 £53.80
17	HP76282-VE2-000 Available to backorder	Discharge Shaft	£6.30 £5.25
18	HP76314-VA3-E41 Available to backorder	Guard Return Spring	£10.92 £9.10
19	HP90102-VE0-000 In stock	Engine Setting Bolt	£3.30 £2.75
20	HP90133-VE0-000 Available to backorder	Pan Head Bolt 8 X 35	£1.19 £0.99
21	HP90135-VE2-000 Available to backorder	Screw	£1.40 £1.17
22	HP90304-VE2-000 Available to backorder	Flange Nut	£3.24 £2.70
23	HP90501-898-000 Available to backorder	Frame Joint Washer	£4.20 £3.50
24	HP90505-VE2-L00 Available to backorder	Washer	£0.92 £0.77
25	HP90841-MN8-300 Available to backorder	Rivet	£4.73 £3.94
26	HP91551-VE2-000 Available to backorder	Lower Stay Collar	£2.74 £2.28
27	HP91552-VE2-000 Available to backorder	Collar	£7.40 £6.17
28	HP91553-VE0-000 Available to backorder	Handle Collar	£3.32 £2.77
29	HP91553-VE2-000 Available to backorder	Collar	£4.46 £3.72
30	HP91555-VE2-L00 Available to backorder	Collar	£4.52 £3.77
31	HP91556-VE2-L00 Available to backorder	Bolt	£4.73 £3.94
32	HP91558-VE2-000 Available to backorder	Scroll Collar	£1.39 £1.16
33	HP92101-08040-0A Available to backorder	Bolt	£1.91 £1.59
34	HP92101-080550A Available to backorder	Bolt	£1.13 £0.94
35	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
36	HP94101-08800 Available to backorder	Plain Washer 8Mm	£0.96 £0.80
39	HP95701-0802200 Available to backorder	Flange Bolt 8 X 22	£2.00 £1.67
40	HP95701-0804508 Available to backorder	Flange Bolt 8 X 45	£2.20 £1.83
42	HP76111-VE2-040ZA Available to backorder	Mower Housing	£185.40 £154.50
43	HP91557-VE1-E50 Available to backorder	Collar	£84.32 £70.27
